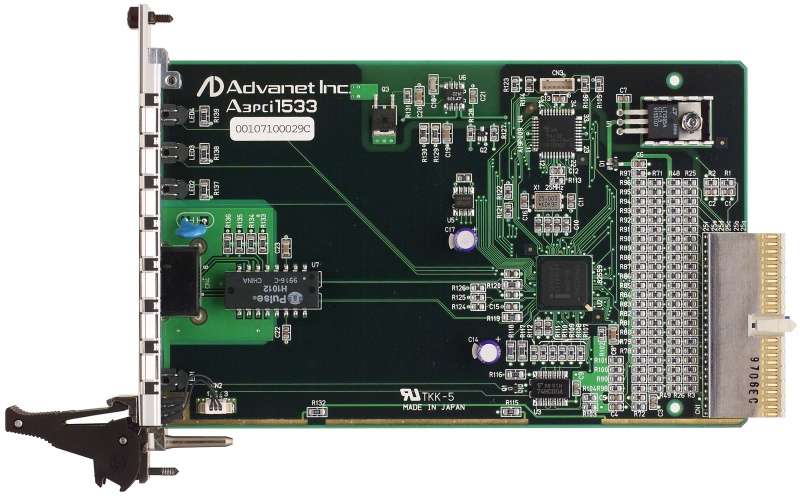

The A3pci1533 is a 3U size CompactPCI FastEthernet board.
It is equipped with a 100/10Base-T RJ45 connector and it features an Intel® GD82559™ controller.
It provides full HotSwap capability and device driver support for Windows NT.
Device driver support for VxWorks® is available as a paid option.

Architecture:

• CompactPCI

Ethernet:

• Controller: Intel® GD82559™
• Transmission speed: 10Mbps, 100Mbps (full duplex operation possible for both of them)
• Connector: one RJ-45
• Indicators: link, activity, speed and HotSwap status LED indicators

Bus:

• CompactPCI bus
• Data width: 32 bit
• Bus speed: 33MHz
• Space required: 64Bytes in PCI I/O space and 1MB in memory space
• Interrupt line: INTA

RoHS:

• Compliant

Power Supply:

• +5V DC
• +3.3V DC

Power Consumption:

• 0.25W typical 0.5W max (+5V DC)
• 0.46W typical 0.83W max (+3.3V DC)

Mechanical:

• Dimension: 3U – 100 x 160 mm (3.94” x 6.30”)
• Pitch: Single Slot – 20.02 mm (0.79”)

Operating Temperature:

• 0 to 60°C

Humidity:

• 0 to 90% non-condensing

Operating Systems Supported:

• VxWorks®, pSOS®, Windows 98®, Windows NT®, Windows 2000®
