A3pci1426

16-channel digital I/O CompactPCI board

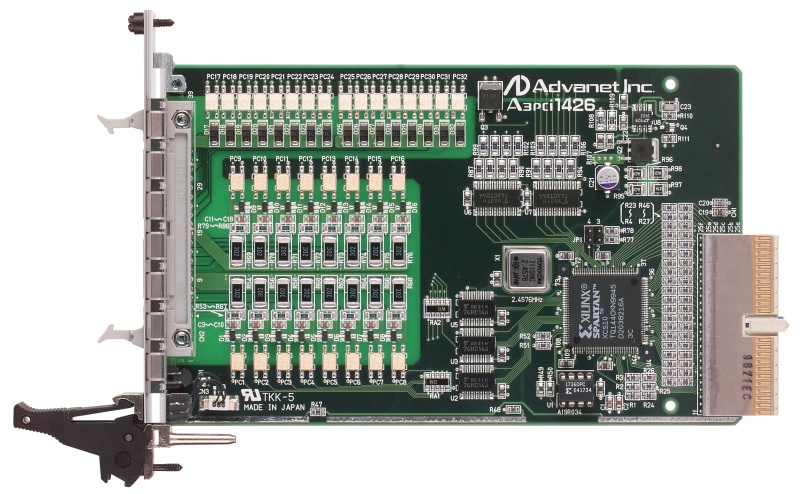

The A3pci1426 is a 3U, 16-channel CompactPCI Digital I/O board.
It is equipped with 16 digital input/output points and all of them are photo-coupler isolated. A built-in digital filter is provided for preventing pulse noise.

Contact us for availability

HIGHLIGHTS

  • 16-channels I/O board
  • Photo-coupler isolation
  • Digital filter software programmable
  • Device drivers for WindowsNT® and Windows2000®
  • Device driver VxWorks® (paid option)

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The A3pci1426 is a 16-channel CompactPCI Digital I/O board that has 3U size.
It is equipped with 16 digital input/output points and all of them are photo-coupler isolated.
Interrupts
Interrupt can be issued from all 16 points on the rising or falling edge.
Digital Filter
A built-in digital filter is provided for preventing pulse noise. The digital filter has a time constant that is software programmable.
Other Features
The board provides full HotSwap capability. A sample program for VxWorks® and device driver support for WindowsNT® and Windows2000® are provided. The device driver support for VxWorks® is available as a paid option.
