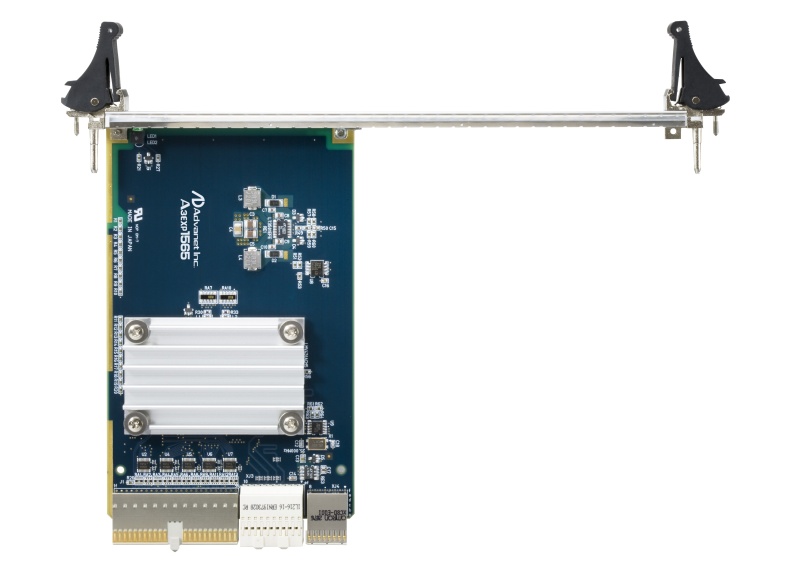

The A3EXP1565 is a bridge board that allows a bus to be converted from CompactPCI Express to CompactPCI. By doing so, CompactPCI Express and CompactPCI can co-reside in the same system.
In combination with the A3EXP1565, a CompactPCI Express bus-compatible peripheral board can be adopted as a CPU board and it can be used with a CompactPCI-capable board.
Backplanes and sub racks are designed for use in combination with the A3EXP1565 are also available.

Architecture:

• CompactPCI Express

PCIe-PCI Transparent Bridge:

• Intel® 41110™

CompactPCI Express:

• Standards:

  -PICMG EXP.0 R1.0 Specification
  -PCI Express base specification Rev.1.0a
  -PCI Express card electromechanical specification Rev.1.0a

• Application slot: bridge hybrid slot (serves as a CompactPCI Express peripheral slot)
• Slot type: hybrid slot only for bridge (operates as a peripheral board of CompactPCI Express)
• Lane width: x4 or x1
• eHM key: Female 5
• Hot plug: Un-corresponding
• Misc: ESD discharge strip support

CompactPCI:

• Standards:

  -PICMG 2.0 R3.0 CompactPCI Specification
  -PCI local bus specification Rev2.3

• Slot Type: hybrid slot only for bridge (operates as a peripheral board of CompactPCI Express)
• Data width: 32bit
• Bus clock: 33MHz or 66MHz
• Signaling level: +5V or +3.3V DC
• Bus master: 6

Power Supply:

• +12V DC
• +5V DC
• +3.3V DC

Power Consumption:

• 6W max (+12V DC)
• 0.5W max (+5V DC)
• 0.3W max (+3.3V DC)

Mechanical:

• Dimension: 3U or 6U – 100 x 160 mm (3.94” x 6.30”)
• Pitch: Single Slot – 20.02 mm (0.79”)

RoHS:

• Compliant

Operating Systems Supported:

• Windows NT®, Windows 2000®, Windows XP®
