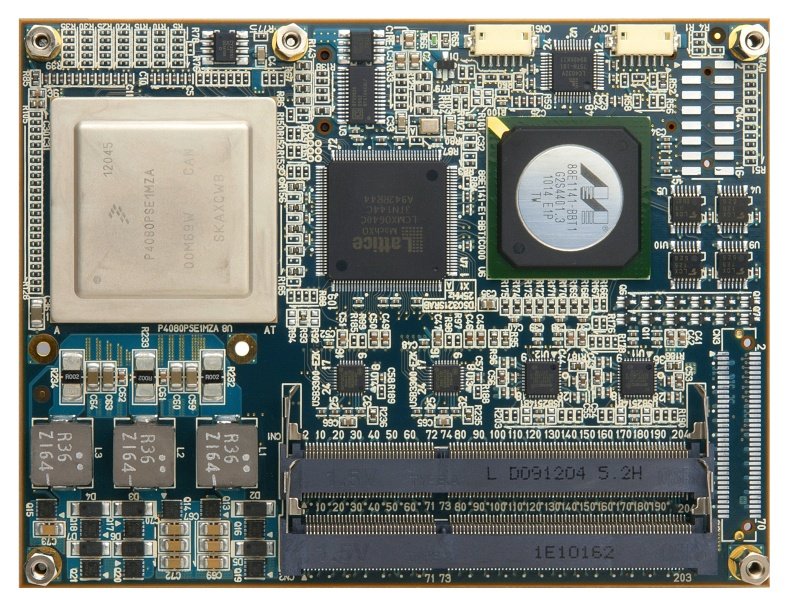

Adbc7517

COM Express Module with Freescale QorIQ P4080 Processor

The Adbc7517 is part of Eurotech’s COM Express module product line based on Freescale’s QorIQ processor family. With a long list of very powerful capabilities, the Adbc7517 is ideal for medical, memory testing, robotics, and communications industries.

HIGHLIGHTS

  • Eight core P4080 processor
  • COM Express form factor
  • Linux or VxWorks operating environments
  • ECC memory support
  • Bootable via Flash, SPI, or SD/SDHC

APPLICATIONS

  • Medical
  • Transportation
  • Semiconductor
  • Communications
  • Data visualization
  • Industrial machinery
  • Network appliances
  • Real-time control
FeaturesSpecificationsAccessories

Designed with the P4080 processor, the Adbc7517 supports eight cores, which can either be consolidated and managed with one operating system or used to run multiple OS environments for the most flexibility in application processing such as DSP.

Interfaces

The Adbc7517 also packs a powerful set of I/O such as quad UART channels, three PCIe ports, three Gigabit Ethernet ports, and four USB 2.0 ports. These are all integrated onto a low power, COM Express design meaning OEMs a solution with the optimum in power, performance, and size.

Configurations

The Adbc7517 is available in several configurations and supports a standard Eurotech carrier board. Eurotech also offers services for those applications that require a custom design.
