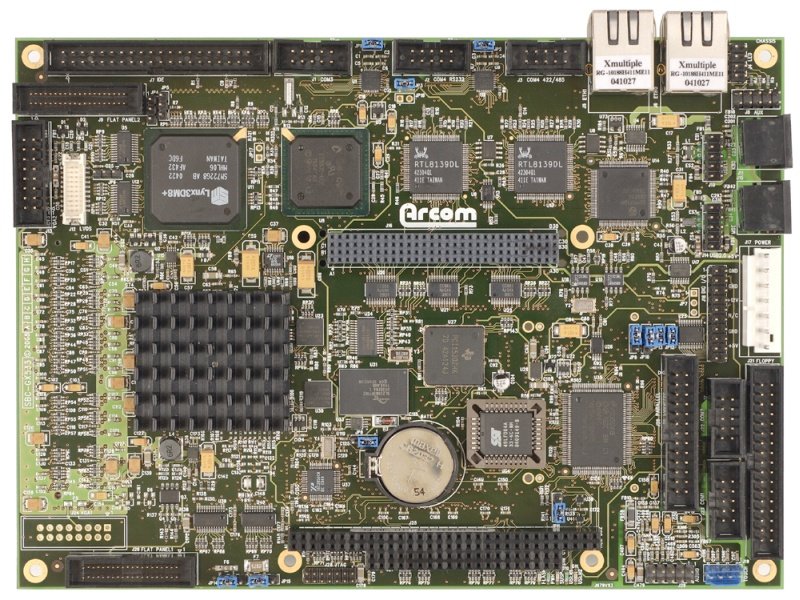

SBC-GX533

5.25" AMD Geode GX 533 Embedded PC

The SBC-GX533 is a low profile, fan-less, RoHS compliant 5.25" form factor board, based on the AMD Geode GX 533@1.1W processor. It is an ideal solution for fan-less embedded controllers which require PC compatibility with full solid-state operation.

Not recommended for New Design

HIGHLIGHTS

  • AMD® Geode GX533™ 400MHz
  • Integrated CRT or TFT graphics controller
  • AC97 Audio CODEC
  • Dual display with TFT/DSTN/CRT support
  • 4-wire analogue touchscreen controller (UCB1400)

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The SBC-GX533 is a low profile, fan-less, RoHS compliant 5.25" form factor board, based on the AMD Geode GX 533@1.1W processor. All the standard PC interfaces accompany this board along with a full range of multimedia features and on-board graphics which enables a standard analog display or a TFT flat panel.
Interfaces
It features several interfaces such as dual 10/100baseTx Ethernet, 32Mbyte Flash drive, CompactFlash port, four USB ports, four serial ports and analogue touchsreen interface.
