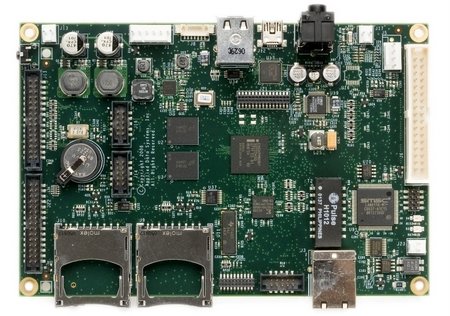

The Graphics ClientM (GCM) is a low-power single board computer targeted towards hand-held, medical, fleet management, and embedded markets.
Based on the Marvell® PXA320™ processor with speeds up to 806MHz, the system is ideal for running graphics-intensive applications, especially those requiring wireless connectivity. The Eurotech SmartIO extends processor power through a wide array of functions and I/O. Eurotech’ customizable capabilities allow customers to balance function with cost.

Architecture:

• Eurotech form factor

CPU:

• Marvell® PXA320™ @ 806MHz

Memory:

• DDR SDRAM: up to 256 MB
• Two SD/MMC/SDIO card ports
• One CompactFlash card port

Video:

• LCD color interface driven by PXA320™
• Support for RGB565
• Video graphics resolution up to 1024 x 768
• Hardware 2-D graphics accelerator
• Backlight connector
• 4 or 5-wire touchscreen interface

Audio:

• One AC97 codec
• One stereo line input or microphone input
• One stereo headphone output and one speaker output

Ethernet:

• 1x 10/100base-T Ethernet

USB:

• 2x USB 1.1 host ports
• 1x USB 2.0 function port (low/full/high speed)

Serial Ports:

• 1x EIA-232/EIA-422/EIA-485
• 2x EIA-232 w/ LVTTL option (for external alternatives like Bluetooth, IrDA)

ADSmartIO:

• Analog inputs
• Digital GPIO
• UART
• 6x8 keypad support

Other Interfaces:

• 1x CAN 2.0b port
• 1x I2C port
• 1x Camera Sensor Interface port option
• 2x software-controlled LED status indicators
• RTC

RoHS:

• Compliant

Power Supply:

• +5V DC
• +12 V DC

Operating Temperature:

• 0 to 70°C (standard)
• -40 to 85°C (extended)

Mechanical:

• Dimension: 102 x 152 mm (4” x 6”)

Operating Systems Supported:

• Windows CE®, Linux®

• Development kit
