Adbc8023

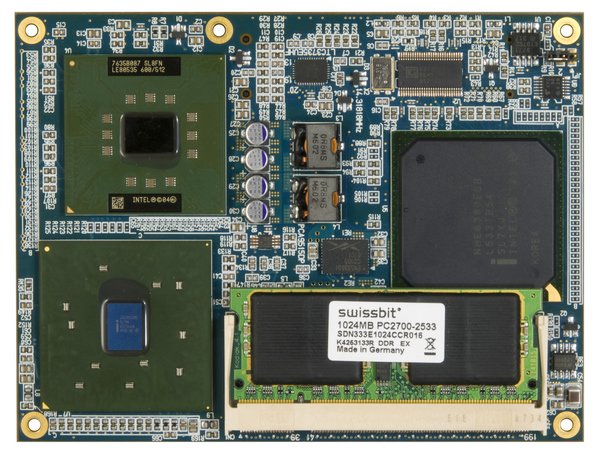

Single Board Computer based on Celeron M processor up to 1.3GHz

CPU board of COM Express basic size High-performance, low-power, and small CPU board produced in Japan adopting Intel® CeleronM™ processor. It is a modular board so carrier board can be freely designed for various size and various combinations of connectors.

HIGHLIGHTS

  • Single board computer of COM Express basic size
  • Intel® Celeron M™ processor and 82855GME™ chip set (Selectable from 600MHz/1.0GHz/1.3GHz)
  • DDR333-compatible SO-DIMM socket x1: 1GB max with ECC support
  • AC 97
  • UXGA (1600 x 1200)

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

CPU board of COM Express basic size High-performance, low-power, and small CPU board produced in Japan adopting Intel® CeleronM™ processor. It is a modular board so carrier board can be freely designed for various size and various combinations of connectors.
It feartures 855GME™ and 6300ESB™ chip set.
It has a main memory of up to 1GB max with ECC function to correct 1 bit of error automatically.
I/O functions and bus signals are collected in the high-density connector on the same standard as COM Express, which should be stacked on the carrier board (I/O base board) in use.
