DuraMAR 3230 Hide

Rugged Cisco 3230 mobile IP router w/integrated gigabit ethernet switch

The DuraMAR® 3230 is a Cisco IOS-managed mobile network router with 16 Ethernet switch ports and an ultra-rugged chassis optimized for harsh military and civil vehicle/aircraft installations.

Not Recommended for New Designs.
Eurotech Recommends the DuraMAR 5915 for New Projects.

HIGHLIGHTS

  • Integrated Cisco Mobile Router
  • Wide Temperature Range
  • MIL-STD-810F Compliant
  • 17x Ethernet Ports
  • 3x Serial Ports
  • Weight: <7.26kg
  • Designed to Meet MIL-STD-704E & 1275B

APPLICATIONS

  • Civil and Military In-Vehicle Networking
  • Mobile-IP Communications-on-the-Move (COTM)
  • Situational Awareness / Net-Centric Operations
  • Layer 2/3 Switching and Routing to WAN/LAN
  • Homeland Security and Defense
FeaturesSpecificationsAccessories

The DuraMAR® 3230 is a Cisco IOS-managed mobile network router with 16 Ethernet switch ports and an ultra-rugged chassis optimized for harsh military and civil vehicle/aircraft installations. The unit integrates Cisco Systems’ 3200 mobile access router technology together with Parvus PC/104+ Gigabit Ethernet switch cards to expand LAN port count and consolidate switch and router functions into a single hardened subsystem designed to MIL-STD-810F and MIL-STD-461E environmental conditions.
Ruggedization
This hardened Commercial-Off the Shelf (COTS) IPv6 compliant router empowers prime defense contractors and civil agencies to achieve mobile communications-on-the-move (COTM) and a wide range of new in-vehicle networking applications in even the harshest shock, vibration, thermal, ingress, and EMI environments. The unit's military-grade power supply supports aircraft (MILSTD-704E) and ground/marine (MIL-STD-1275B*) vehicle voltage inputs, spikes, and transient levels.
Interfaces

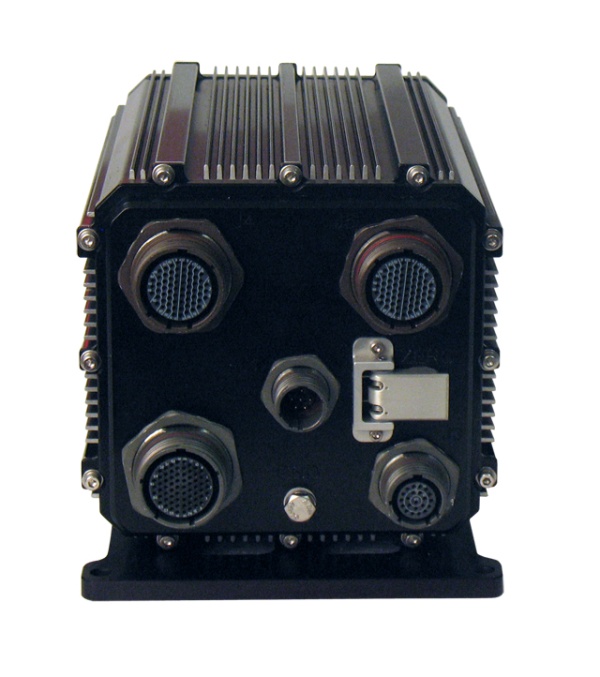

Sealed MIL-C-38999 connectors bring out an IOS-managed 10/100 WAN port, three (3) IOS-managed 10/100 switch ports, and thirteen (13) 10/100/1000 Gigabit Ethernet switch ports (COM-1268 managed), as well as two multi-protocol serial ports and a RS-232 management console port. The DuraMAR 3230 is also equipped with a data zeroization button for enhanced security and a conductively cooled chassis with near cable-less internal design for solid reliability under high mechanical stress.
