An ideal Commercial Off the Shelf (COTS) solution for Internet Protocol (IP)-based networking applications, the unit integrates embedded security processing, generous performance, high memory capacity, and high-density interfaces to deliver the performance, availability, and reliability required for scaling mission-critical applications.
Standard Compliance

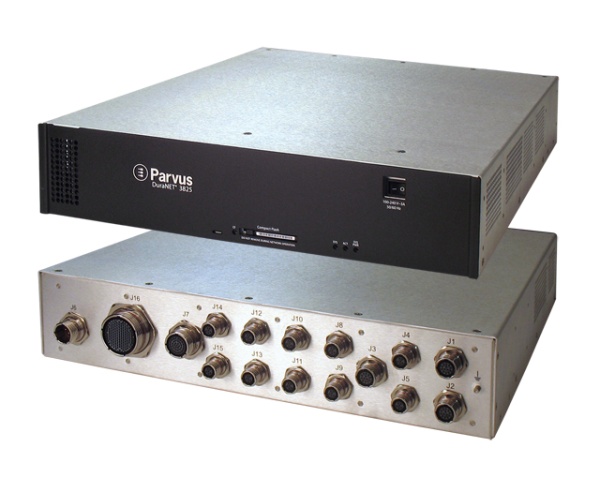

Designed to meet MIL-STD-901D Grade B shock levels and MIL-STD-461 EMC requirements, the DuraNET 3825 incorporates mechanical packaging enhancements to suite shipboard / military installations.
Interfaces
It features up to two (2) copper Gigabit Ethernet uplinks, a (1) Gigabit Ethernet Switch port, sixteen (16) 10/100 Ethernet ports, and eight (8) Asynchronous /Synchronous RS-232 serial ports in a 19” rack-mount chassis with circular MIL-C-38999 connectors.
Protocols Supported
Network features include port autosensing, QoS and VLAN capabilities complaint with 802.1p and 802.1Q standards, and 802.1D Spanning Tree protocols. For ease of management and configuration, the router features the intuitive, Web-based Cisco Router and Security Device Manager (SDM) with support for Secure Shell Protocol Version 2 (SSHv2) and Simple Network Management Protocol Version 3 (SNMPv3) protocols to encrypt the management session. Select models also integrate a Cisco VPN Hardware Encryption Acceleration module and upgraded system and Flash memory configurations.
Performance:
- Designed to deliver multiple concurrent services at wire-speed performance of up to T3/E3 rates.
T3/E3 value represents IMIX packet sizes in higher than typical 3825 services configurations. In
less service-intense environments, actual WAN throughput will be higher. In light service
environments with 64 byte packets, the 3825 series can achieve between 350-500 Kpps
Standard Compliance:
- IEEE 802.1d Spanning Tree Bridge
- IEEE 802.3 10 Mbps 10BASE-T (Ethernet)
- IEEE 802.3ab 1000BASE-T 1000 Mbps (Gigabit Ethernet)
- IEEE 802.3u 100BASE-TX 100 Mbps (Fast Ethernet)
- IEEE 802.1D Spanning-Tree Protocol
- IEEE 802.1P LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization
- IEEE 802.1Q Virtual LAN (VLAN); Trunking
Memory:
- Flash Memory (Compact Flash): 64 MB (-01 model), 128MB (-02/-03 models)
- System Memory (DDR-SDRAM with ECC): 256 MB (-01 model), 512 MB (-02/-03 models)
Installation:
- 19" RS-310 Rackmount, 2U Height
- PRV-1313-01 Includes Front Panel Handles & Support for Optional Rail Slides
- PRV-1313-02/-03 Models Support Standard Cisco Rack Mount Brackets
Mechanical:
(PRV-1313-01)
- Dimension: 88.9 x 485.14 x 480.06 mm (3.50" x 19.10" x 18.90") Overall Depth with Connectors: 502.9 mm (19.80")
- Weight: Approx. 12.4 kg (w/ optional rails)
- Chassis: Aluminum Alloy w/Black Anodize Front Panel; Chem Film Finish Rear/Sides (Gold
Hexavalent Chromium)
- Connectors: MIL-C-38999 Olive Drab Cadmium
(PRV-1313-02 / -03)
- Dimensions: 3.50" x 17.61" x 18.28" H x W x D, Overall Depth with Connectors: 19.31"
- Weight: Approximately 25.2 lbs / 11.4 kg
- Chassis: Aluminum Alloy w/Black Anodize Front Panel; Chem Film Finish Rear/Sides (Clear
Trivalent Chromium)
- Connectors: MIL-C-38999 Olive Drab Cadmium (-02), Electroless Nickel (-03)
Power Supply:
• AC Input: 100 – 240 VAC
Power Consumption:
- <300 Watts
- In-rush current: <10A typical
Environmental:
- Forced Convection Cooling; Top/Side Inlet – Side/Rear Exhaust
- 50 dBa typical noise level
- Shock: Designed to meet MIL-S-901D, Grade B (Surface Ship Interior Spaces)
- EMC: Designed to meet MIL-STD-461
- Altitude: Sea Level to 6000 Ft (oper temp derates @ higher altitudes)
Operating Temperature:
Humidity:
MTBF:
- 124,751 hours (Ground Benign)
- 37,425 hours (Naval Sheltered)
Warranty:
- 90-Day RTF Warranty (Extended Service Contracts Available that Bundle Cisco SmartNet
Software Upgrades/Updates)
