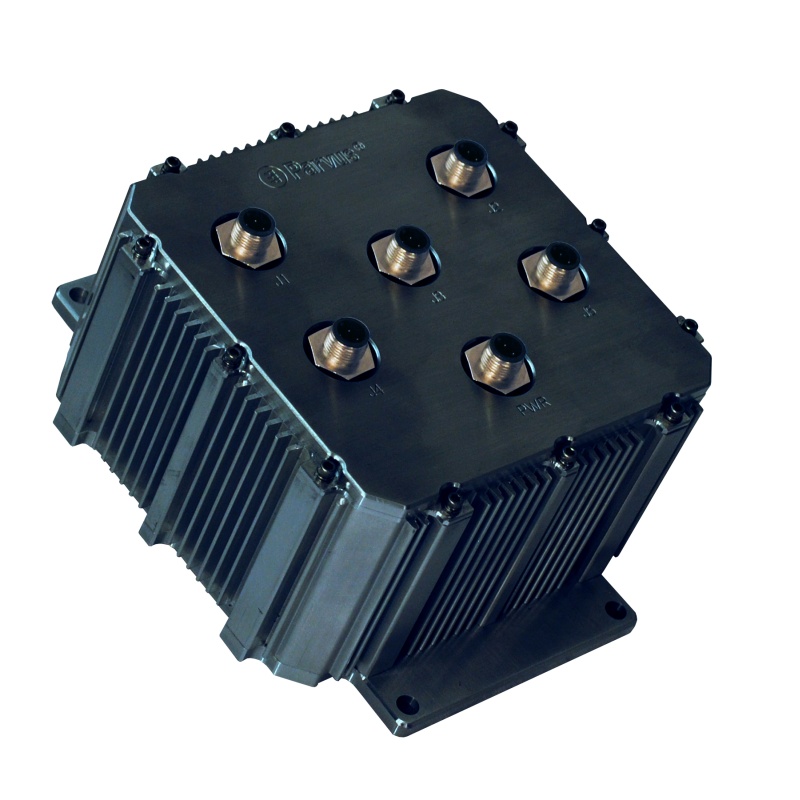

Featuring a robust mechanical design and extended temperature operation from -40บC to +85บC (-40บF to +185บF), the DuraNET 10-10 network switch provides five 10/100 plug-and-play Ethernet ports over rugged field deployable RJ-45 or M12 connectors in a sealed and fanless metal chassis designed for mounting to any machine or flat surface. With provisions for exposure to wide thermal ranges, shock, vibration, dust particles, and liquid immersion, the rugged rugged DuraNET 10-10 combines proven and open-architecture PC104 Ethernet switch and vehicle-grade power supply components in a rugged package designed for maximum reliability under extreme conditions, including provisions for hazardous locations and potentially explosive atmospheres.
Featuring five IEEE 802.3/u compliant (10/100mpbs) Ethernet transceiver ports and support for auto-MDI-MDIX network installation, the robust unit requires no configuration. Any of its five transceiver ports are flexibly designed to serve as an uplink. Support for auto-crossover, auto-polarity, auto-negotiation, and bridge loop prevention are all integrated. A non-blocking switching fabric provides excellent data transmission performance at wire speed.
RUGGED MECHANICAL DESIGN
Water Tight, Sealed Metal Enclosure
Anodize Coated Aluminum Chassis for Durability
Integrated Heat sinking for Fanless Cooling
Extended Temperature Operation: -40บC to +85บC / -40บF to +185บF
Rugged RJ-45 or M12 Connectors for Anti-Shock/Vibe Protection
IP67 Ingress Protected from Sand, Dust, Moisture, Immersion
Bulkhead Mountable Enclosure with Integrated Flanges
ETHERNET PORTS
Five (5) Auto-Detecting 10/100BaseT Ethernet Ports
Auto-MDI/MDIX Crossover 100BaseTX/10BaseT
Auto-Sensing of Full or Half Duplex on Each Port
Auto-Negotiation Between 10BaseT & 100BaseT
Any Port Can Serve as Uplink for Network Expansion
SWITCHING
Unmanaged Switch: No Configuration Required; Plug and Play
Non-Blocking Switch Fabric 10/100Mbps Port Connectivity
Five Fully Independent Media Access Controllers
RELIABLE POWER
Robust Vehicle-Grade DC Power Supply
Voltage/Surge Protection and EMI Filtering
Galvanic Isolation (select models)
APPLICATIONS
Ethernet switching in extreme environments (cold / hot temperatures, humidity, rain, dust, impact, vibration, shock). Well suited for tactial, mobile, outdoor, and vehicle applications, such as border security, disaster recovery, first responder vehicles, underground mining, offshore drilling, oil exploration, petrochemical processing plants, shipboard, and critical infrastructure (i.e. electric utility substations, energy grid)
DATA TRANSFER
Unmanaged Switch: No Configuration Required
10 Mbits/sec or 100 Mbits/sec, Full Duplex or Half Duplex Mode
512 Kb Frame Buffer Memory; 1,024 MAC Address Look-up Engine
Store-and-Forward Switching
COMPLIANCE
IEEE 802.3 10 Mbps 10BASE-T (Ethernet)
IEEE 802.3u 100BASE-TX 100 Mbps (Fast Ethernet)
IPv4 and IPv6 Traffic Compatible
CONNECTIONS
Ports: Five (5) Ethernet Ports, One (1) Power Input
Ethernet Connectors: IP67 Rated RJ-45 (with caps) or 4-Pin M12 Male Fully Sealed against Dust/Water and Field Deployable
Power Connector: 3-Pin M12 Male
POWER
Voltage Input: 12 / 24 / 28 VDC (Choice of Integrated DC Power Supplies to Support Voltage Ranges of 8 to 40 VDC or 18 to 36VDC)
Galvanic Isolation Supported on 18-36V Model
Power Consumption: Estimated at < 8W
Power Protections: Transient, Surge, Reverse Polarity Protected
PHYSICAL
Dimensions (LxWxH): 5.6 (~14.2 cm) x 5.9 (~15.0 cm) x 3.0" (~7.62 cm), Excluding Connectors & Mounting Plate (7.1 / 18cm wide w/ mounting plate)
Weight: ~3.5 lbs (~ 1.58 kg)
Installation: Integrated Flange Mount Plate for Bulkhead / Wall Mount
Chassis: Aluminium Alloy, Corrosion Resistant, Anodize Finish
Cooling: Passive Natural Convection. No Moving Parts
Degree of Protection: IP67 / NEMA 6 Dust Proof / Waterproof Even Without Connector Covers
ENVIRONMENTAL
Temperature: -40 to +85C (-40บF to +185บF)
Shock and Vibration: Designed for Mobile, Vehicle, Marine, & Offshore Use
Humidity: Up to 95% RH @ 40C, Non-Condensing
Water Immersion: 1 Meter Submersion (Similar to IPX7)
Dust Ingress: No Dust Ingress (Similar to IP6X)
PENDING APPROVALS
Designed for Compliance with:
Hazardous Locations: UL 1604 / CSA C22.2/213 (Class 1, Division 2)
Emissions: FCC Part 15 Class A
Explosive Atmosphere (CE ATEX)
RELIABILITY
Designed & Manufactured using ISO 9001:2000 Certified Quality Program
Industrial-Grade Components, Including Circuit Card Assemblies Qualified to MIL-STD-810
No Moving Parts; Passively Cooled
WARRANTY
1 Year Return to Factory Warranty(Extended Service Contracts Available)
ACCESSORIES
Starter Cable for Ethernet Port (Mating M12 to Standard RJ-45 for Ethernet);Starter Cable for Power Connection (Mating M12 to Banana Plugs for Power) - for Lab / Non-Rugged Use
SPECIAL ORDER OPTIONS
MIL-STD-810 / MIL-STD-461 Certified Units with MIL-DTL-38999 Connectors See DuraNET 1059 Datasheet
Conformal Coated Printed Circuit Boards (PCBs)
Status Indicators (LEDs); Port-Based VLAN Support; Fiber Optic Interfaces
Roadmapped Configuration: Gigabit Ethernet Ports; Web-Based Management
