DuraNAS 1000

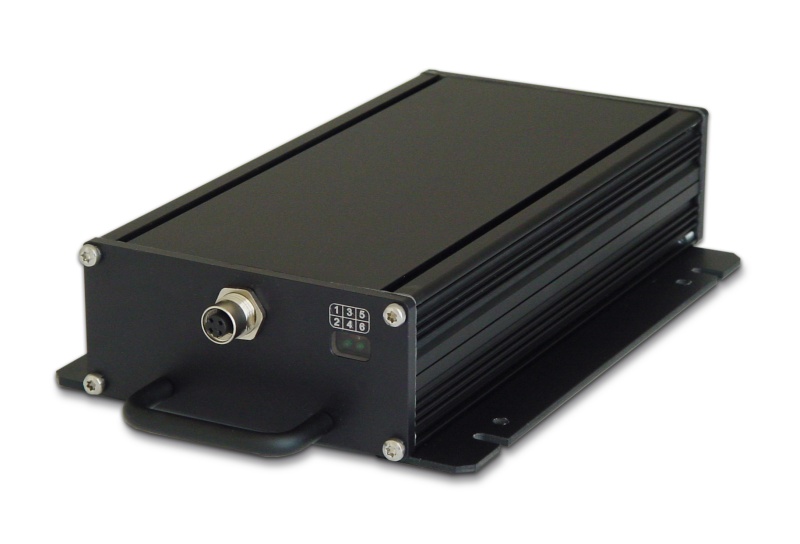

DuraNAS 1000 Rugged Network Attached Storage

The DuraNAS 1000 provides reliable high capacity Network Attached Storage (NAS) to IP-based systems installed on rolling stocks as well as in all the applications where a rugged device designed for harsh environment is required. The DuraNAS 1000 is ideally suited to complement a DuraCOR DC Family’s video recording system providing expandable and removable mass storage for compressed video data.

HIGHLIGHTS

  • Rugged compact enclosure
  • Designed for hash environment
  • Up to 1 TB aggregated storage
  • Raid 1 functionality (up to 500 GB)
  • 10/100 Mbit Ethernet
  • POE power supply
  • Quick and easy setup thanks to its DHCP client interface
  • EN50155 fully qualified

APPLICATIONS

  • Public Transportation
  • Security & Surveillance
  • Homeland Security
  • Defense
  • Audio/Video Streaming
  • Video Capture
  • Data Logging
FeaturesSpecificationsAccessories

The DuraNAS 1000 provides reliable high capacity Network Attached Storage (NAS) to IP-based systems installed on rolling stocks as well as in all applications where a rugged device designed for harsh environment is required. The DuraNAS 1000 is ideally suited to complement a DuraCOR DC Family’s video recording system providing expandable and removable mass storage for compressed video data.
The DuraNAS 1000 is a network device which can be accessed from anywhere the network is accessible, even from remote locations.
An Ethernet interface to mass storage is a reliable interconnection technology in harsh environment applications where EMC and immunity to electromagnetic interferences are key requirements. Long cables are supported and the inherent insulation of Ethernet increased the operational reliability of the DuraNAS1000 compared to other technologies such as USB2.0.
A high-performance NAS controller chip is used to bridge two 2.5” form factor SATA HDDs to a 10/100Mbit Ethernet.
Extensive measures have been taken to ensure reliable operation under all conditions and compatibility with internationally respected standards. The sealed Ethernet I/O connector, Power Over Ethernet (POE) power supply and a compact rugged mechanical enclosure increase field reliability.
The Eurotech NAS system is intended to be used together with an external video recording system of the DuraCOR Family and provides storage for up to 30 days of compressed video. Two DuraNAS 1000 can be joined for redundancy or capacity expansion.
