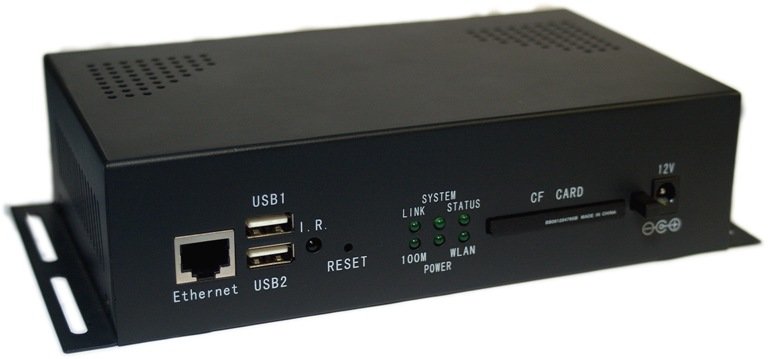

Bring High Definition to distributed video and digital signage solutions at low cost and low power consumption with the Player HD. The Player HD is the latest addition to Eurotech’s Video over IP product family.
Interfaces
With high definition capability up to 1920 x 1080 resolutions, the Player HD is an ideal product for any digital signage application looking to leverage the power of Video over IP technology. Users have the flexibility to store and stream data either on a PC, a Compact Flash card with no limit on the size of the card, or even a USB port. This feature set, coupled with optional WiFi capability, means that the Player HD is an extremely flexible and configurable solution for any digital signage application.
NetCast Server
The Player HD comes available with the netCast Server Windows application. The netCast Server is a user friendly tool for scheduling and loading media content according to a single or multiple Player HD unit whether they are configured in unicast or multicast setups. The Player HD and the netCast Server can be used as stand-alone products or configured with other products in Eurotech’s netCast and Video over IP product family.

The Player HD comes available with the netCast Server Windows application. The netCast Server is a user friendly tool for scheduling and loading media content according to a single or multiple Player HD unit whether they are configured in unicast or multicast setups. The Player HD and the netCast Server can be used as stand-alone products or configured with other products in Eurotech’s netCast and Video over IP product family.

CPU:

• SIGMA Designs® CPU @ 200 MHz

Memory:

• SDRAM: 128 MB
• Compact Flash (Type II) slot

Media Source:

• 10/100Mbit Ethernet
• CF-card slot

Decoding:

• JPEG decoding (hardware accelerated)

Video Out:

• Analog CRT, S-Video, HDMI

Audio:

• Stereo Output

USB:

• USB 1.1 host port

Serial Ports:

• RS-232 serial port

Ethernet:

• 10/100 Mbit Ethernet

WLAN:

• IEEE 802.11 b/g (optional)

Other Features:

• Browser-accessed video control
• Compliance: CE FCC

Power Supply:

• 12 V DC

Operating Temperature:

• 0 to +60°C

Humidity:

• 20 to 80% non-condensing

Mechanical:

• Dimension: 170 x 105 mm (6.7” x 4.1”)
• Weight: approx 400g

• Power Supply: 110 to 240Vac 50 to 60 Hz input and 12VDC output
