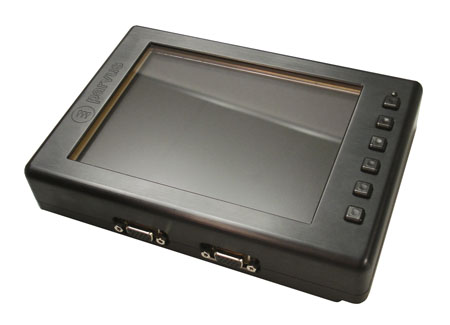

The DuraVIS 3000 Series is a rugged flat panel 6.5" TFT Liquid Crystal Display (LCD) offering daylight readability and a hardened mechanical design well suited for avionics, military, vehicular, and other high reliability applications. Featuring an anti-glare protective Lexan cover for impact protection and explosive decompression, this VGA compatible monitor integrates a high luminance (850 Nit) LED backlight for long lamp life (50,000 hours), excellent dimming capabilities (down to 4%), and exceptional low-temperature operation (-20C).

Packaged in a hardened aluminum housing with flexible mounting options, the DuraVIS 3000 display is qualified to meet MIL-STD-810F and MIL-STD-461E environmental standards. This lightweight (3lbs) unit features two front bezel buttons for brightness controls and accepts standard VGA or fully differential signals for flexibility with long line applications (up to 500ft).

Color AMLCD:

• 6.5" Color Amorphous Silicon Thin Film Transister Liquid Crystal Display (a-SI TFT LCD)

Backlight:

• 850 Nit Daylight Readable LED Backlight
• Optimized for wide temperature use and dimming)

Brightness / OSD Control:

• 6 Pushbuttons for Brightness & OSD Control or 2 Pushbuttons for Brightness Control only

EMI/EMC Shielding:

• Integrated Conductive O-Ring Gasket, ITO Coating
• MIL-STD-461E Compliance for Radiated/Conducted Emissions/Susceptibility

Protective Window:

• Protective Lexan Window w/ITO, Anti-Reflective and Hard Coatings over LCD

MIL Tested:

• Qualified to MIL-STD-810F Environmental Standards for Operational Temperature, Storage Temperature, Shock, Vibration, and Altitude.

Operating Temperature:

• -20 to +60°C

Backlight:

• LED Backlight (Bulb Life MTBF: 50,000 Hours)

Liquid Crystal Display:

• 6.5" (16.6cm) diagonal a-SI TFT LCD with LED Backlight

Viewable Area:

• 5.2" (W) x 3.9" (H) / 132.5mm (W) x 99.4mm (H)
• Acrylic front protective window is anti-reflective coated (MIL-C-14806 compliant) and ITO coated for glare and EMI control.

Optical Characteristics:

• Luminance (Brightness): 850 cd/m² (nit)
• Dimming: 30 levels of brightness control
• Resolution: 640 x 480 pixels
• Colors: 262,144
• Contrast: 250:1 (typ)
• Response Time: 13ms (typ)
• Viewing Angle: -50~50° (H), -35~45° (V) - @ contrast ratio 10:1

Video Input:

• VGA Analog Video Input and Full Differential Input (for long line applications up to 500ft w/ Cat5)

Connectors:

• Female DB-15 (VGA/Differential), Female DB-15 (Power)

OSD Controls:

• Removable Access Panel in Rear

Standard:

• Tested to MIL-STD-810F (temp, shock/vibe, altitude)

EMI/EMC Compliance:

• Tested to MIL-STD-461E for radiated and conducted emissions and susceptibility

Power Supply:

• Compliance: MIL-STD-704E
• Power Input: 28VDC (14 to 35VDC range)
• Reverse input voltage polarity protection

Power Consumption:

• 15W typical
• 27W max

Mechanical:

• Dimensions: 192.02 x 136.14 x 38.1 mm (7.56” x 5.36” x 1.50”)
• Weight: approx. 1.36kg
• Mounting: rear panel hole pattern (for bolting optional mounting bracket)
• Enclosure: aluminum alloy 6061-T6, black anodize finish (MIL-A-8625, Type II, Class 2)

Operating Temperature:

• -20°C to +60°C
• Cooling not required, natural convection

Altitude:

• Sea level to 41,000 feet

Shock/Vibration:

• MIL-STD-810F, method 514.5 (Jet & Helicopter Test Profiles)

Humidity:

• 0 to 95% non-condensing
