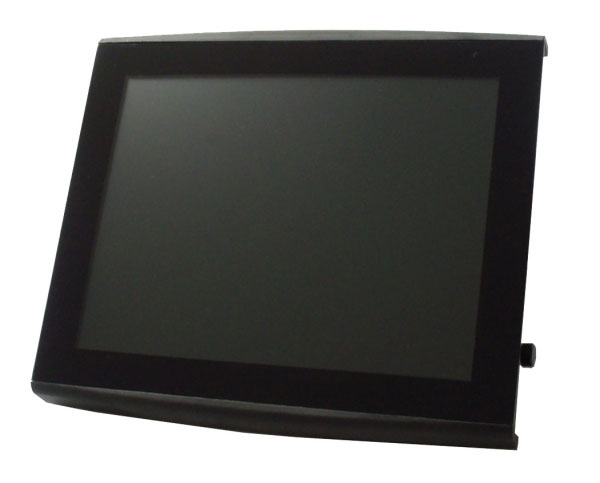

The DuraVIS™ displays for mobile and transportation applications are available in two sizes: 12.1” and 15”. These hardened displays integrate a wide temperature range automotive class LCD element, a wide adjustment flicker-free backlight, isolated high reliability power supply and intelligent controller for display management and data interfacing. Suitable applications range from driver displays to MMI and SCADA. Compatibility with Eurotech rugged central units is guaranteed.
Optimal operation during night and day conditions is possible due to the backlight that can be adjusted from 100% down to 5%. The DuraVIS™ power supply is designed to be compatible with the electrical environment of vehicle or industrial installations; overvoltage, transients, load dump, reverse polarity and short circuit conditions.
A double buffered LVDS input is designed to support safe live-inserting and removal of the LVDS interface cable. Cable lengths up to 10 meters are supported using a high quality cable and connectors.

Display Size:

• 15”

Resolution:

• XGA 1024 x 768

Colours:

• 256.000

Display Interface:

• Differential LVDS – 18-bit data
• Double buffering – supports live cable insertion and removal
• Intelligent Power-on sequence control

Brightness:

• 450 cd/m2

Contrast Ratio:

• 450:1

Viewing Angle:

• 150°H - V up 60°/down 50°

Backlight:

• CCF with 50.000h lamp life
• Adjustment 5% to 100%
• Manual control knob
• Delayed soft start upon power up

Standard:

• IP 65
• EN 50155 Cooling
• EN 50155-T1 dry heath (55°C/131°F)
• EN 60950
• CE

Power Supply:

• 9 to 40V DC Galvanically isolated up to 500Vdc

Power Consumption:

• 2.4W typical

Mechanical:

• Dimensions: 366 x 322 x 34 mm (14.41” x 12.68” x 1.34”)
• Thickness excluding connectors
• Weight: 4.8 kg

Operating Temperature:

• -20 to + 70°C
