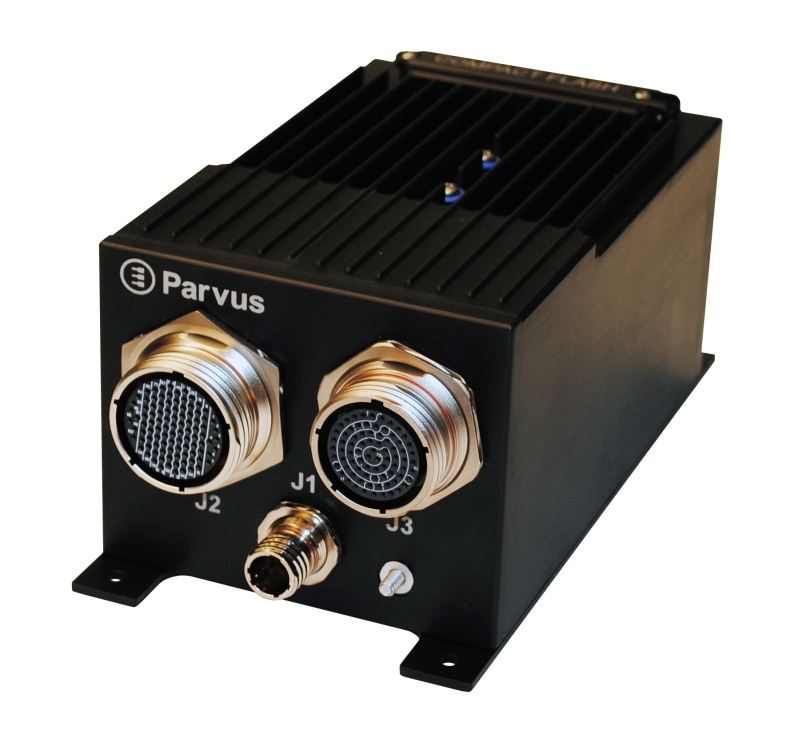

DuraCOR 830

Rugged Small Form-Factor Tactical Mission Computer w/ Intel Atom Processor & Optional MIL-STD-1553

The DuraCORฎ 830 is a rugged tactical mission processor based on the ultra low-power 1.6Ghz Intel Atom CPU, optimally designed for Size, Weight, and Power (SWaP)-constrained military / aerospace vehicle and aircraft installations.

HIGHLIGHTS

• Small Form Factor: < 4 lbs.
• 2x PC104+ Expansion Slots
• 1.6 GHz Intel Atom Z530, 2GB RAM
• Dual Solid State Disks
• Designed to MIL-STD-810, 461, 704
• -40บC to +71บC Fanless Op Temp
• 2x DDC MIL-STD-1553 Controllers
• 1x Gigabit Ethernet Interface
• Optional SAASM GPS receiver

APPLICATIONS

• (Un)manned Vehicle / Aircraft Server
• Command and Control (C2) On the Move
• Civil / Military Mobile Rugged Computing
• 4ISR Situational Awareness
• Technology Refresh / Retrofit / LRU
General DescriptionFeaturesSpecificationsAccessories
Mechanically compact (<4” tall, <4lbs heavy), this small form-factor computer subsystem integrates Gigabit Ethernet and dual MIL-STD-1553 (optional) connectivity, along with digital I/O and standard PC interfaces, including analog video, audio, 3x USB, 2x RS-232 serial, keyboard, and mouse. For application flexibility, the unit comes with a removable 16 GB CompactFlash disk pre-loaded with a Linux or Windows Embedded operating system and an 8GB industrial solid state disk (SSD) for additional file storage.

Designed for avionics and ground vehicle platforms to enhance situational awareness and computational capabilities, the DuraCOR 830 delivers processing and multimedia performance similar to Pentium M-based DuraCOR solutions, but with less power consumption, double the RAM memory capacity, and dual Flash SSDs.

The system is also equipped with a 28V power supply compliant with MIL-STD-1275 and MIL-STD-704 voltages, spikes, and surges. The unit is based on a modular PC/104-Plus architecture with up to two (2) open card slots and over 100 spare connector pins for I/O expansion, making it possible to special order with customer-specific I/O configurations.

The DuraCOR 830 is designed for use under extended temperature (-40 to +71ฐC) and other demanding MIL-STD-810G environmental conditions (thermal, shock, vibration, altitude, humidity). Its conductively cooled, sealed aluminum chassis incorporates protection from water and dust ingress, as well as MIL-STD-461F emissions and susceptibility.
Power and system I/O signals are brought out through lightweight, high-density MIL-38999 connectors, making the product an ideal solution for a variety of unmanned and manned command and control (C2) applications.

Professional services are available to deliver special order/custom configurations with desired I/O pre-integrated (i.e. more MIL-1553 Channels, RS-232/422/485 Async Serial Ports, SAASM/civil GPS Receiver, MPEG-4 Encoder, etc.).
