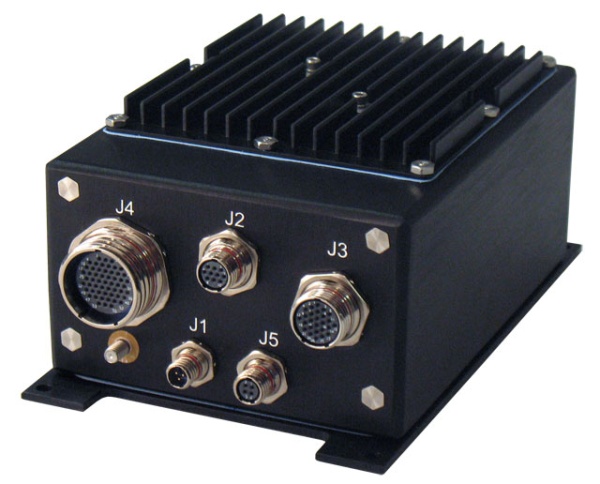

DuraCOR 820-A Hide

Small form-factor tactical mission computer with Intel® Atom™ processor, optional MIL-STD-1533

The DuraCOR® 820-A is a rugged tactical mission processor based on the ultra low-power 1.6Ghz Intel® Atom™ CPU, optimally designed for Size, Weight, and Power (SWaP)-constrained military / aerospace vehicle and aircraft installations.

Not Recommended for New Designs.

HIGHLIGHTS

  • Intel Atom Z530 Processor, 1.6 GHz
  • Integrated Solid State Disk, 4 GB
  • CompactFlash Solid State Disk, 16 GB
  • 1x Gigabit Ethernet 10/100/1000 Mbps
  • 3x USB 2.0, 2x RS-232 Serial
  • Analog VGA, Keyboard, Mouse, DIO
  • 1x Channel DDC MIL-STD-1553 (Optional)
  • Other I/O Configurations by Special Order

APPLICATIONS

  • (Un)manned Vehicle / Aircraft Server
  • Command and Control (C2) On the Move
  • Civil / Military Mobile Rugged Computing
  • C4ISR Situational Awareness
  • Technology Refresh / Retrofit / LRU
  • Defence and Homeland Security
FeaturesSpecificationsAccessories

The DuraCOR® 820-A is a rugged tactical mission processor based on the ultra low-power 1.6Ghz Intel® Atom™ CPU, optimally designed for Size, Weight, and Power (SWaP)-constrained military / aerospace vehicle and aircraft installations.
Interfaces
Mechanically compact (~ 3.0” tall, ~3lbs weight), this small form-factor computer subsystem integrates Gigabit Ethernet and MIL-STD-1553 (optional) connectivity, along with digital I/O and standard PC interfaces, including analog video, 3x USB, 2x RS-232 serial, keyboard, and mouse.
For application flexibility, the unit comes with a 4GB industrial solid state disk (SSD) pre-loaded with a Linux® or Windows Embedded® operating system, as well as a 16 GB CompactFlash disk for file storage.
Designed for avionics and ground vehicle platforms to enhance situational awareness and computational capabilities, the DuraCOR 820-A delivers processing and multimedia performance comparable (or better) to Pentium M-based DuraCOR solutions, but with less power consumption, double the RAM memory capacity, and dual Flash SSDs. The system is also equipped with a 28V high efficiency power supply compliant with MIL-STD-1275 and MIL-STD-704 voltages, spikes, and surges.
Ruggedization
The DuraCOR 820-A is designed for use under extended temperature (-40 to +71°C) and other demanding MIL-STD-810F environmental conditions (thermal, shock, vibration, altitude, humidity). Its conductively cooled, sealed aluminium chassis incorporates protection from water and dust ingress, as well as MIL-STD-461E emissions and susceptibility. Power and system I/O signals are brought out through lightweight, high-density MIL-38999-like connectors, making the product an ideal solution for a variety of unmanned and manned command and control (C2) applications.
The unit is based on a modular PC/104-Plus architecture, making it possible to special order with customer-specific I/O configurations, determined by the available connector pinouts.
