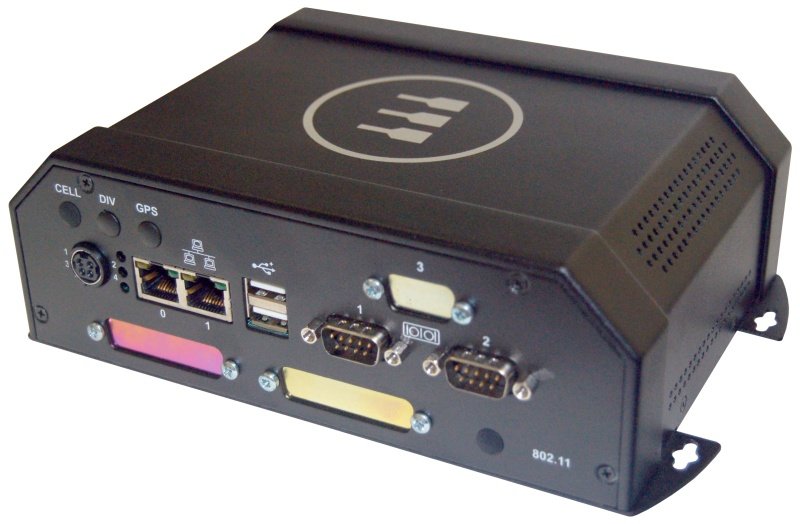

The ZEUS ICE is run by the ZEUS, an ultra-low power, high performance single board computer. The ZEUS board is designed and manufactured by Eurotech Ltd and is based on the Intel XScale PXA270™, 520MHz processor. The ZEUS' functionality is all broken-out to industry standard connectors.
Interfaces
The ZEUS ICE has dual 10/100baseTx Ethernet, onboard 128MB SDRAM, 32MB Flash memory, CompactFlash (CF+) port, two USB 1.1 ports, 2 serial ports and onboard graphics. It can drive a standard VGA analogue display. There is also provision to add PC/104 modules.
The ZEUS ICE also includes a wireless modem and a GPS receiver, and is designed to create cost effective solutions in asset monitoring, asset tracking, mobile terminals and network communication controllers. ZEUS ICE provides real-time network access to any Ethernet, 802.11 or serial device for mobile and fixed data applications.

Mounting:

• Fitted with Eurotech’s ZEUS processor board
• Panel mount

CPU:

• XScale PXA270™ 520MHz

Memory:

• SDRAM: 128MB soldered on board
• Flash: 32MB
• CompactFlash (CF+) accessible via removable plate
• SDIO support for MMC/SD/SDIO cards

Video:

• Standard DB15 RGB female option in place on third COM port

Cellular Network:

• Optional GSM/GPRS/GPS

RF Antenna:

• GSM/GPRS cellular (SMA female)
• GPS (SMA female)
• 802.11b (RP-SMA female)

Security:

• Optional 64/128-bit WEP/WPA data encryption

Watchdog:

• Hardware with start-up or software trigger

Ethernet:

• Dual 10/100BASE-TX controllers

USB:

• Dual USB ports

Serial Ports:

• 2x RS-232
• 1x RS-232/422/485

Expansion:

• PC/104

RoHS:

• Compliant

Power Supply:

• 10 to 30V DC

Power Consumption:

• 2W typical (excluding 802.11b, cellular and other peripheral devices)
• 5W (approximate average, including 802.11b and cellular)

Mechanical:

• Dimension: 238 x 137 x 65 mm (9.37” x 5.39” x 2.56”)
• Weight: 1.4kg

Operating Temperature:

• -20 to +65°C (without 802.11)
• 0 to +60°C (with 802.11)

Humidity:

• 10 to 90% non-condensing

Operating Systems Supported:

• Linux 2.6® Eurotech optimized Kernel
