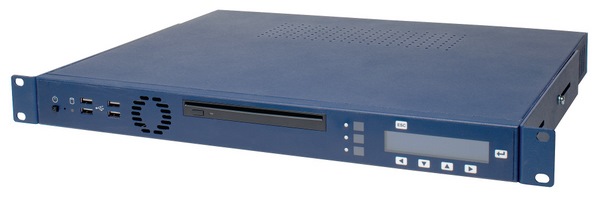

The GEMINI ICE 1U (industrial compact enclosure) is optimised for the Intel® Core 2 Duo™ based GEMINI single board computer. The GEMINI ICE 1U is a rugged industrial computer built from seam welded, mild steel. It includes a 180W universal AC input power supply (DC input option is also available), optional front panel 'user' information and navigation display, and provides easy access to all the features of the high performance GEMINI platform. The standard system includes a low profile DVD/CDRW drive and internal 2.5"/3.5" disk drive options.

Mounting:

• 19" rack mount 1U (35 mm deep)

CPU:

• Intel® Core 2 Duo™ / Core Duo™ / Core Solo™ / Celeron M™ 4xx processor @ 533/667 MHz FSB

Memory:

• DDR2: up to 3 GB 533/667 MHz
• CompactFlash
• Low profile 3.5" FDD, 2.5"/3.5" HDD

Video:

• Dual independent analog VGA, LVDS, DVI interface
• Front panel 2 line 24 character LCD display

Ethernet:

• 4x 10/100/1000 Ethernet ports

USB:

• 6x USB ports

RS-232:

• 2x RS232
• 1x RS232/422/485

Audio:

• Audio jack sockets
• Keyboard/mouse ports
• Parallel port

Other Features:

• DVD/CDRW drive

Expansions:

• 2x PCI v2.2 expansion slots

Standards:

• FCC/CE EMC EN55022-024

Power Supply:

• 110V to 240V AC

Power Consumption:

• 180W Flex-ATX auto-ranging

Mechanical:

• Dimension: 349.9 x 482.6 x 43.7 mm (13.78” x 19” x 1.72”)
• Weight: about 6.0kg

Operating Temperature:

• +5 to +55°C (standard)
