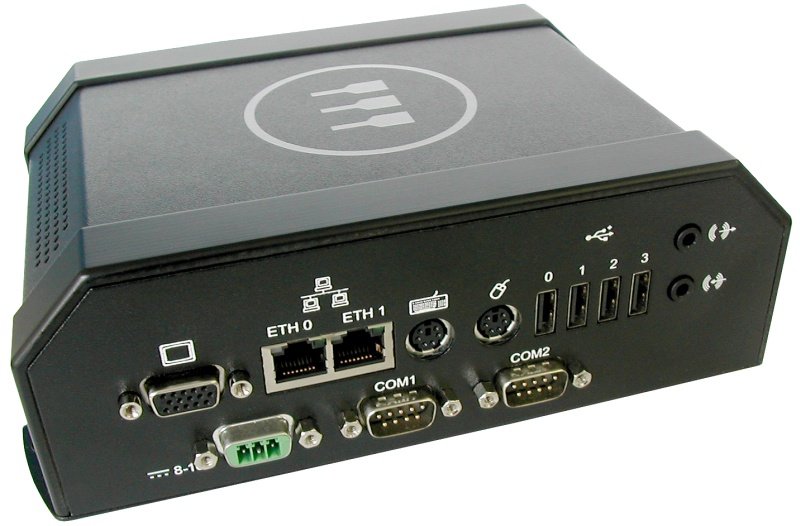

Catalyst EC ICE

Intel Atom based enclosure ideal for remote telematic and wireless data acquisition/routing applications

The Catalyst EC ICE is an industrial enclosure for the Catalyst Processor and EC Baseboard. This combination is ideal for remote telematic and wireless data acquisition/routing applications. Its rugged construction enables it to operate within most environments and its two-piece aluminium construction offers a fully CE compliant ready-to-go solution.

HIGHLIGHTS

  • Intel® Atom™ up to 1.6GHz
  • DDR-2: up to 1GB 400/533MHz
  • 2x independent display outputs – LVDS video and analogue RGB
  • 2x 10/100/1000 BASE-T
  • 4x USB 2.0
  • Touchscreen/backlight 4/5/8-wire resistive interface

APPLICATIONS

  • Fixed asset monitoring
  • Process control
  • Ticketing
  • Multi-media
  • Remote display devices
  • Machine control
  • Communications gateways
  • Access control
FeaturesSpecificationsAccessories

The Catalyst EC ICE is an industrial enclosure for the Catalyst Processor and EC Baseboard. This combination is ideal for remote telematic and wireless data acquisition/routing applications. Its rugged construction enables it to operate within most environments and its two-piece aluminium construction offers a fully CE compliant ready-to-go solution.
CPU
The Catalyst EC ICE provides all the benefits of Intel's Atom™ architecture in a rugged enclosure; comprising of a processor module and carrier board. Using Intel's Hi-K 45nm technology the Intel Atom Z5xx™ series processor delivers the benefits of Intel's x86 architecture in a robust, ultra-small package with exceptional performance-perwatt.
Running at 1.1GHz or 1.6GHz, the system offers high-performance x86 compatibility in a fanless enclosure, requiring only a fraction of the power previously needed for comparable systems.
Chipset
The processor is matched with an Intel System Controller Hub (SCH) US15W™ which is a highly integrated device combining a graphics memory controller and an I/O controller.
Operating Systems
Catalyst EC ICE is compatible with all major desktop operating systems, and is also available with pre-installed, ready to run, embedded operating systems including Windows XP®, XP Embedded®, and embedded Linux®.
Other Interfaces
A full range of on board peripherals are provided including 4 x USB 2.0 ports, VGA, HD-Audio, RS232, Ethernet and IDE. Expansion requirements are covered by a PCI Express MiniCard, offering the latest wireless technology.
