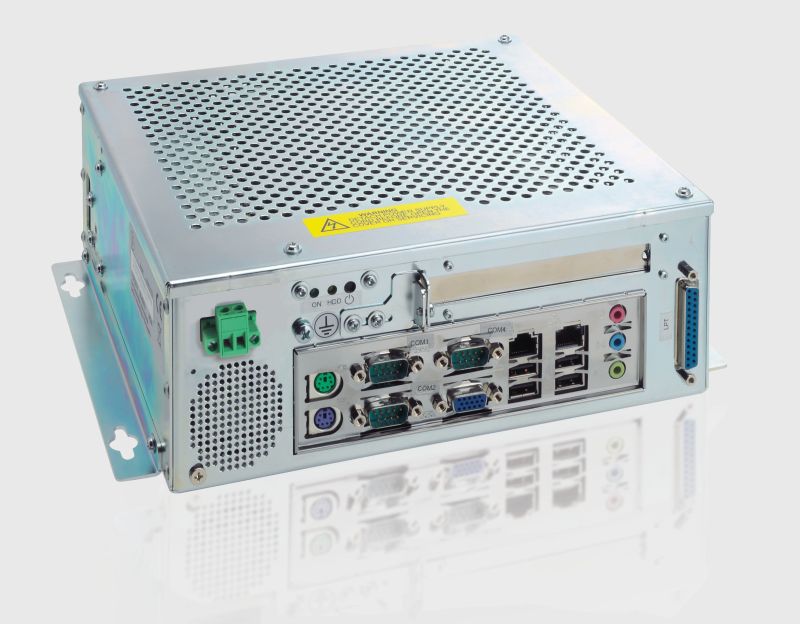

Bx-400F-N270

Fanless Low Power Atom™ Industrial Box Computer

The Eurotech Bx-400F-N270 is a fanless Industrial Box Computer featuring the Intel® Atom™ N270 1.6 GHz Ultra Low Voltage processor. This feature increases energy efficiency while offering both targeted performance and low power consumption in a highly integrated design.

HIGHLIGHTS

  • Atom™ N270 1.6 GHz Ultra Low Voltage
  • 4x USB2.0
  • 2x Ethernet 10/100/1000 Mbps
  • 2x RS232 Serial Ports + 1x optional RS232 Serial Port

APPLICATIONS

  • Industrial
FeaturesSpecificationsAccessories

The Eurotech Bx-400F-N270 is a fanless Industrial Box Computer featuring the Intel® Atom™ N270 1.6 GHz Ultra Low Voltage processor. This feature increases energy efficiency while offering both targeted performance and low power consumption in a highly integrated design. All this while maintaining full Intel® Core™ micro-architecture instruction set compatibility.
The Bx-400F-N270 has been developed to resist the mechanical and thermal stresses commonly experienced in industrial environments.
Interfaces
Four USB2 interfaces, two 10/100/1000 Mbps Ethernet ports and two (optionally three) RS232 serial ports allow the connection of a vast range of devices. A monitor, mouse and keyboard can also be easily connected to the Bx-400F-N270 for fast setup operations.
Using the two mounting brackets included in the kit, the Bx-400F-N270 can be installed on a DIN rail. Optionally, a mechanical kit can be ordered to fix the system in angled positions.
For embedded applications the Bx-400F-N270 can be equipped with an optional Compact Flash reader and the necessary support for operating systems such as Windows XPE®.
