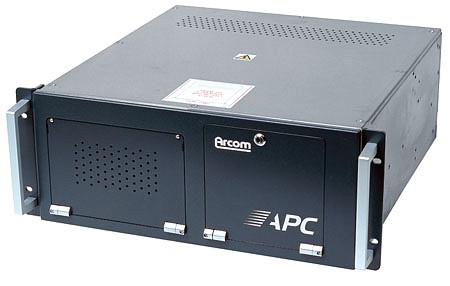

The APC Pentium 4™ system is a rugged 19" enclosure (4U high by 450mm deep) based on a Socket 478 industrial PC card with support for both Intel® Celeron™ and Pentium 4™ processor technology. The APC Industrial PC is designed and manufactured by Eurotech to achieve the toughest standards for applications in telecoms, railway/railroad signalling/information display and manufacturing machinery. They can also be fitted with alternative power supply options for -48V DC, UPS or hot swap dual redundant applications.

Mounting:

• 19" rack mount 4U

CPU:

• Intel® Celeron™/Pentium 4™

Memory:

• DDRAM SDRAM: up to 2 GB
• 3.5" 80 GB ATA100 HDD

Graphics:

• S-VGA Graphics

Serial Ports:

• 1x RS232
• 1x RS232/422/485

USB:

• 2x USB 1.1/2.0 channels

Ethernet:

• 10/100baseT Ethernet

Other Features:

• CDRW/DVD drive

Expansions:

• 4x PCI 10x ISA

Standards:

• FCC/CE EMC EN55022-024
• Shock and vibration tested

Power Supply:

• 95-220V AC

Power Consumption:

• 480W max

Mechanical:

• Dimension: 482.6 x 176.6 x 450 mm (19” x 6.95” x 17.72”)
• Weight: 18kg (including backplane, PSU, drives, processor and board)

Operating Temperature:

• 0 to +50°C (standard)

MTBF:

• Complete systems: 246,000 hours
• PSU: 100,000 hours @25°C
• Cooling fans: 50,000 hours @45°C

Options:

• Alternative supply options can be fitted for -48V DC, UPS or hot swap dual redundant applications
