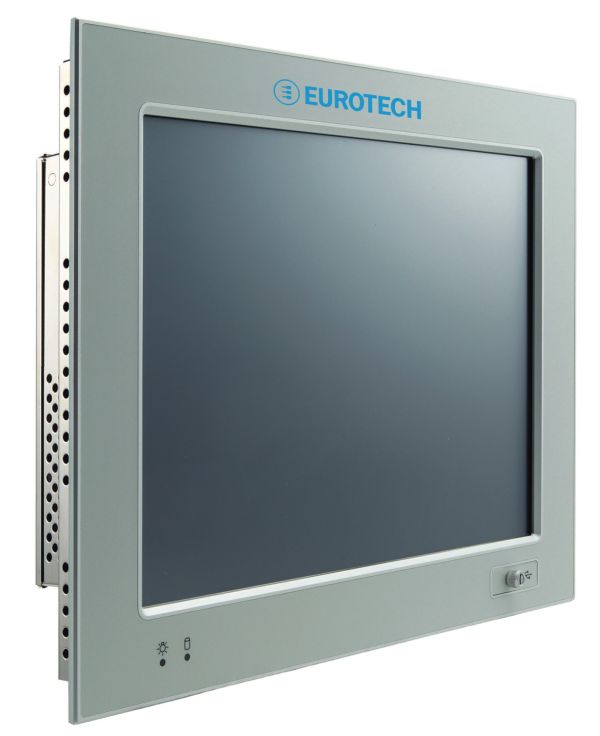

Fanless Low Power Atom™ Panel Computer - 15" TFT Display

The Eurotech Vx-150F-N270 is a fanless Panel PC with a high brightness 15” TFT touchscreen display. Based on the Intel® Atom™ N270 1.6GHz processor, it allows maintaining full Intel® Core™ micro-architecture instruction set compatibility.

Not Recommended for New Designs.
Look at the VX-151F-N270 for New Programs.


  • High brightness 15” TFT
  • Touchscreen: 8-wire resistive
  • Atom™ N270 1.6 GHz Ultra Low Voltage
  • DDR2 SO-DIMM: 200 pin, up to 2 GB
  • 2x Ethernet 10/100/1000
  • 1x USB2.0 on the front panel, 4x USB2.0 on the rear panel
  • 1x RS232 Serial Port + 1x optional RS232 Serial Port


  • Industrial
  • Building automation

The Vx-150F-N270 features the Intel® Atom™ N270 1.6 GHz Ultra Low Voltage processor. This increases energy efficiency while offering both targeted performance and low power consumption in a highly integrated design. All this while maintaining full Intel® Core™ micro-architecture instruction set compatibility.
The characteristics of the integrated Single Board Computer and the use of static components, make the Vx-150F-N270 suitable for a multitude of environments, including industrial and building automation.
Four USB2.0 interfaces on the rear panel and one on the front panel, two 10/100/1000 Mbps Ethernet ports and one (optionally two) RS232 serial ports allow the connection of a vast range of devices. An external monitor, mouse and keyboard can also be easily connected to the Vx-150F-N270 for fast setup operations. A Mini PCI Express expansion slot is also available.
The touchscreen is 8-wire resistive: this guarantees durability and long-lasting calibration.
The front panel provides an IP65 protection rating and includes a USB port, PowerOn LED and Hard Disk Activity LED.
The Vx-150F-N270 uses the easy and fast “Rapido” mounting system.
