VX-120F-N270

Fanless Low Power Atom™ Panel Computer - 12.1" TFT Display

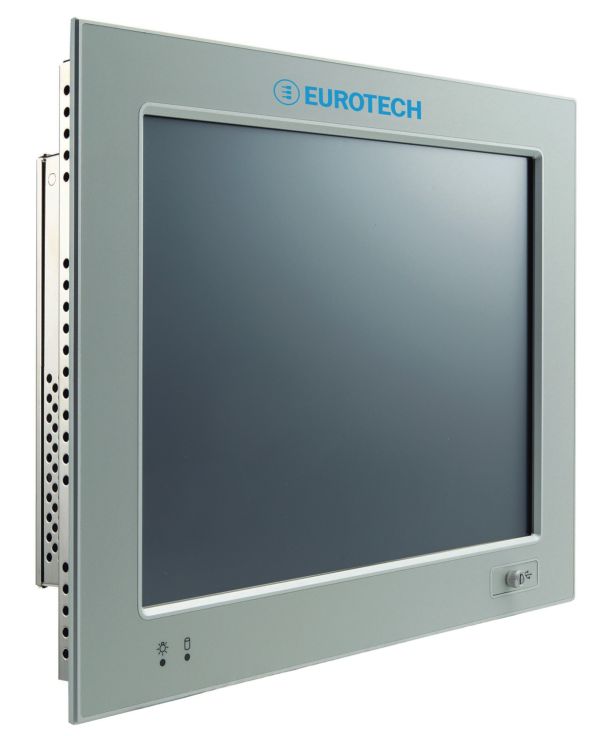

The Eurotech Vx-120F-N270 is a fanless Panel PC with a high brightness 12.1” TFT touchscreen display based on the Intel® Atom™ N270 1.6GHz processor.


HIGHLIGHTS

  • High brightness 12.1” TFT SVGA (800 x 600), Touchscreen 8-wire resistive
  • Atom N270™ 1.6GHz
  • DDR2 SO-DIMM: 200 pin, up to 2 GB
  • 1x Mini PCI Express slot
  • 2x Ethernet 10/100/1000
  • 1x USB2.0
  • 4x USB2.0
  • 3x RS-232

APPLICATIONS

  • Industrial
  • Building automation
FeaturesSpecificationsAccessories

The Vx-120F-N270 features the Intel® Atom™ N270 1.6GHz Ultra Low Voltage processor. This increases energy efficiency while offering both targeted performance and low power consumption in a highly integrated design. All this while maintaining full Intel® Core™ micro-architecture instruction set compatibility.
The characteristics of the integrated Single Board Computer and the use of static components, make the Vx-120F-N270 suitable for a multitude of environments, including industrial and building automation.
Four USB2.0 interfaces on the rear panel and one on the front panel, two 10/100/1000 Mbps Ethernet ports and three RS232 serial ports allow the connection of a vast range of devices. An external monitor, mouse and keyboard can also be easily connected to the Vx-120F-N270 for fast setup operations. A Mini PCI Express expansion slot is also available.
The touchscreen is 8-wire resistive: this guarantees durability and long-lasting calibration.
The front panel provides an IP65 protection rating and includes a USB port, PowerOn LED and Hard Disk Activity LED.
The Vx-120F-N270 uses the easy and fast “Rapido” mounting system.
