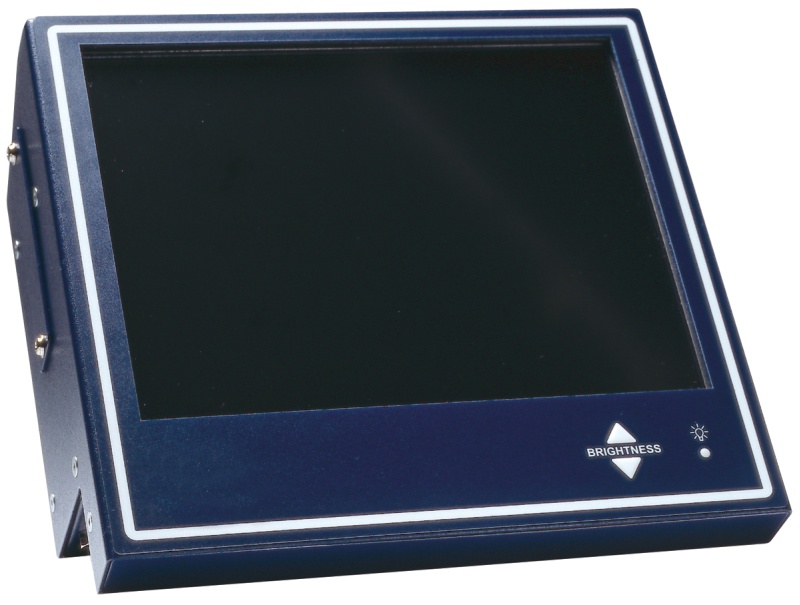

ICE-VIEW-100

Rugged industrial compact enclosure with touchscreen display and VESA compatible mounting system

The ICE-VIEW-100 is a rugged ergonomic design for installation onto OEM machines or into vehicle systems. Using a standard VESA compatible mounting system, the ICE-VIEW-100 is fitted with an internal baseboard which supports a 24V PSU (9 - 36V DC), an analog touchscreen interface and industry standard connectors.

Not Recommended For New Designs

HIGHLIGHTS

  • VIPER processor board
  • NEC® 8.4" VGA sunlight-readible LCD-TFT
  • SDRAM: up to 64 MB on board
  • Access for VIPER CompactFlash port
  • 2x USB 1.1

APPLICATIONS

  • Industrial
  • Transportation
FeaturesSpecificationsAccessories

The ICE-VIEW-100 is optimised for the PXA255 XScale based VIPER single board computer. The ICE-VIEW-100 is a rugged ergonomic design for installation onto OEM machines or into vehicle systems. Using a standard VESA compatible mounting system, the ICE-VIEW-100 is fitted with an internal baseboard which supports a 24V PSU (9 - 36V DC), an analogue touchscreen interface and industry standard connectors.
