PRELIMINARY INFORMATION
PRODUCT UNDER DEVELOPMENT

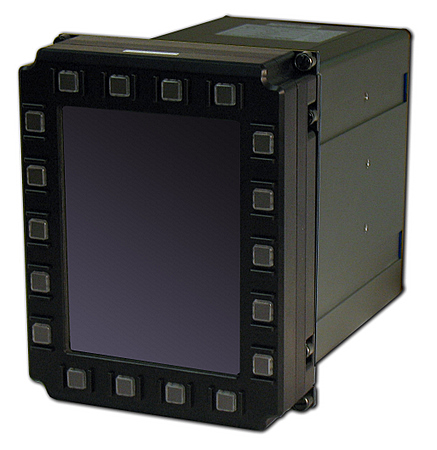

Designed to meet MIL-STD-810F, MIL-STD-704E and MIL-STD-461E standards, the rugged DuraVIS 4300 is based around an expandable PC/104-Plus x86 computer architecture, avionics power supply and sunlight-readable 6.5" flat panel LCD. Designed to accommodate standard 1/4-turn (Dzus) rail mount installations, the unit features user-programmable push buttons located around the front panel, an anti-glare protective cover for impact protection and a high luminance (800 Nit) LED backlight for long lamp life (50,000 hours), excellent dimming capabilities (down to 4%), and exceptional low-temperature operation (-40°C operational).

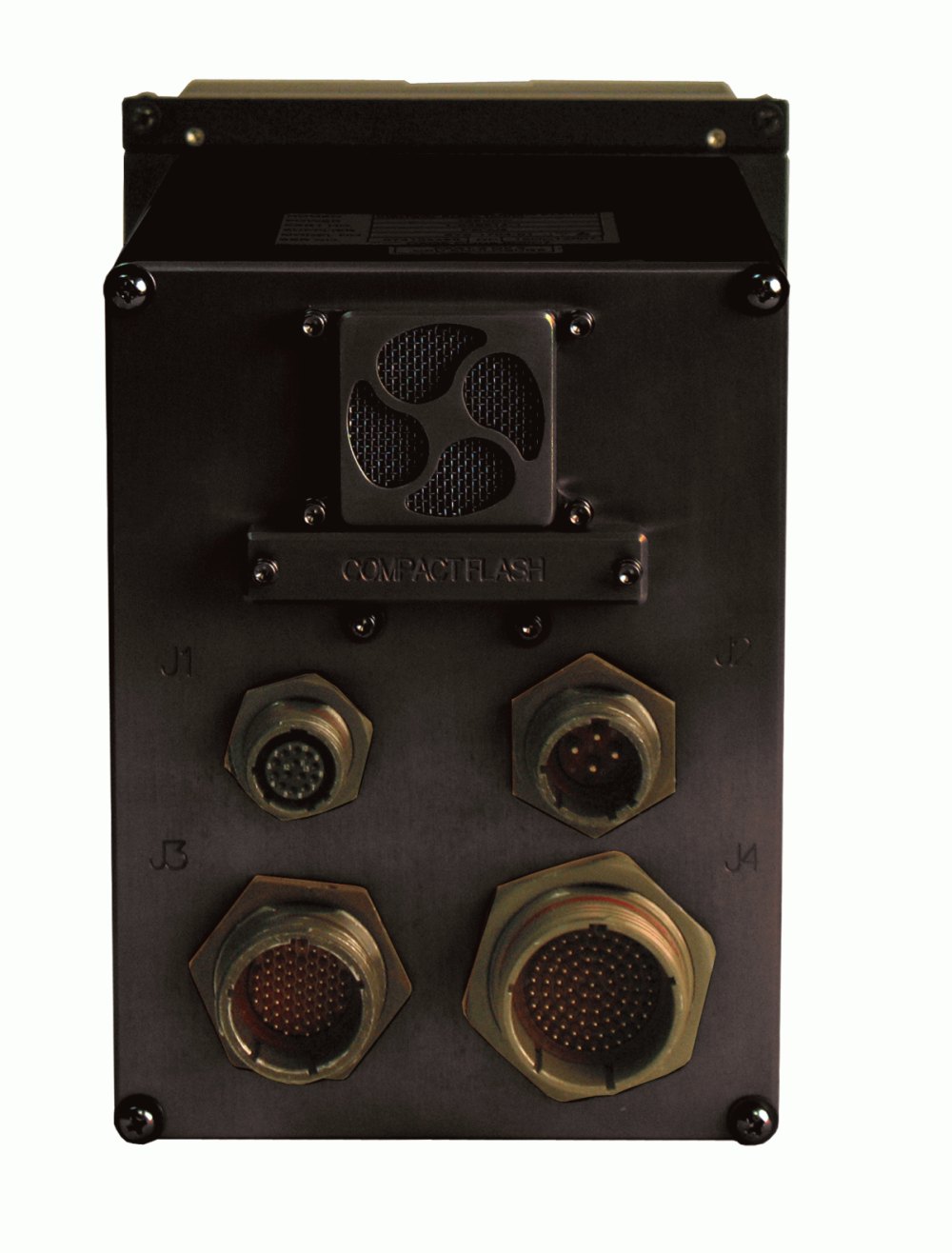

Compatible with VGA inputs and customer-furnished x86 software (i.e. Linux, Windows XPe), the DuraVIS 4300 has rear panel MIL-C-38999 connectors bringing out 10/100 Ethernet, VGA, power, Audio, 4x USB, 2x Serial, Keyboard and Mouse. The DuraVIS 4300 also includes a 79-pin expansion connector, which is conveniently routed to an internal breakout board and headers so that up to two application specific PC/104(+) cards can be easily integrated without mechanical changes.
Processor:
· x86 Compatible with Windows XPe, Linux
· 800MHz Intel Pentium III or 400MHz Intel Celeron Computer
Memory:
· 256MB DRAM
· 2GB CompactFlash Solid State Disk (Removable through Rear Panel)
LCD:
· Sunlight readable (800 cd/m² luminance) 6.5" Color Active Matrix TFT
Optical Characteristics:
· Viewable Area: 3.8" x 5.1"
· Luminance: 800 cd/m² (nit) typical
· Resolution: 640 x 480 pixels
· Colors: 262,144
· Gray Shades: 64
· Contrast: 300:1
· Screen Orientation: Portrait
· Viewing Angle: 110° Horizontal, 140° Vertical
Pushbuttons:
· 18 User Programmable Pushbuttons
· Backlit Keycaps
· Keys can be mapped for any function, including brightness adjustments
· Keypad emulates PC/AT keyboard
Expandable:
· Modular Embedded PC Architecture
· PC/104 railed card cage with up to two open slots
Power:
· 28VDC Input; MIL-STD-704E Compliance
Reflection Compliance:
· Reducing Coating MIL-C-14806
Environmental:
· Operating Temperature: -40°C to +60°C (-40°F to +140°F)
· Storage Temperature: -55°C to +85°C (-67°F to +185°F)
· Cooling: Forced Air
· Relative Humidity: Operating and Non-Operating: 6% to 100%
· Vibration & Shock: per MIL-STD-810F
Weight:
· Estimated at 6 lbs
Installation:
· MS25212 Mounting: 4 quarter-turn Dzus fastener studs (3/8" hole centers)
Dimensions:
· Estimated at 5.750" (W) x 7.50" (H) x 8.80" (D) - without connectors
Chassis:
· Aluminum Alloy 6061-T6 Enclosure
· Finish: Black Anodize (MIL-A-8625, Type II, Class 2)
Connector Interfaces:
· MIL-C-38999 (VGA, Network, Power, 2 Serial, 4 USB, Keyboard, Mouse, Audio, 79-pin user expansion)
