DuraVIS 3400

10.4" Rugged Touchscreen Flat Panel LCD Display

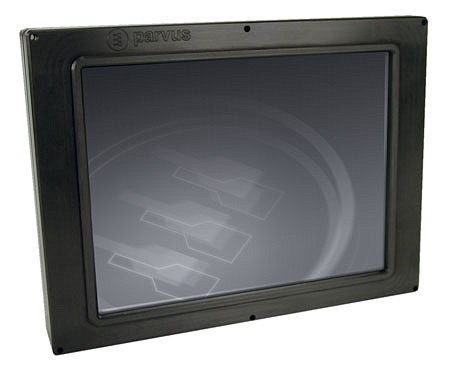

The DuraVIS® 3400 is a rugged 10.4" resistive touchscreen Liquid Crystal Display (LCD). Optimized for panel-mount installations in civil and military ships, vehicle and airborne environments, this rugged flat panel monitor features a robust mechanical design with internal shock and vibration isolation, hardened aluminum housing, and integrated gasketing for water and EMI resistance.

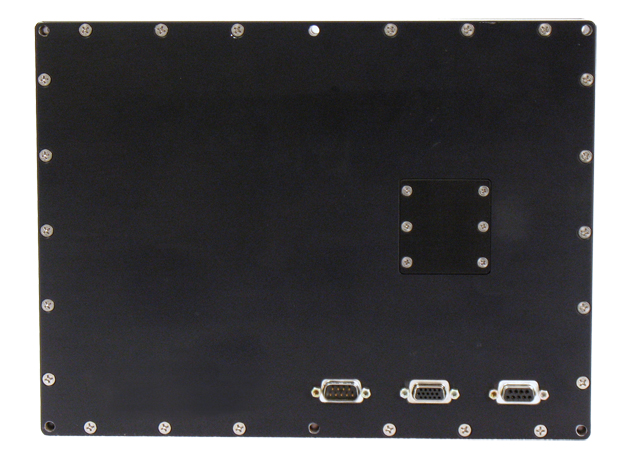

Featuring a high brightness (400 Nit) CCFL backlight rated for long lamp life (50,000 hours), the DuraVIS 3400 produces clear color images in full SVGA (800x600) resolution with a 500:1 contrast ratio. Backlight brightness is adjusted through a panel-mountable keypad (included) or through a rear panel, which also provides access for on-screen display (OSD) adjustments. The unit accepts a standard analog video input and uses an RS-232 interface for touchscreen control.


General DescriptionFeaturesSpecificationsAccessories
The DuraVIS® 3400 is a rugged 10.4" resistive touchscreen flat panel display. Optimized for panel-mount ship, vehicle and airborne installations, this 400 Nit SVGA (800x600) resolution color Liquid Crystal Display features a robust mechanical design with internal shock and vibration isolation, hardened aluminum housing, and integrated gasketing for water and EMI resistance.

The DuraVIS® 3400 accepts VGA input and uses a RS-232 interface for touchscreen control.

Designed for compliance with various MIL-STD-810F environmental and MIL-STD-461E EMI/EMC standards, the DuraVIS® 3400 display offers exceptional low-temperature operation (-20C) and resistance to shock and vibration profiles experienced by jet and rotary aircraft.
