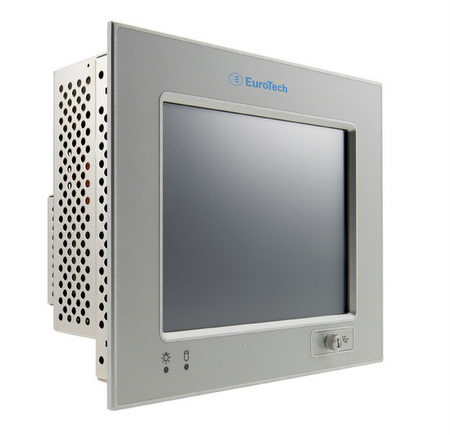

VX-151P

Panel PC display LCD TFT 15” touchscreen with Celeron M, Core Duo, i5 processors and one PCI slot expansion

VX-151P is a panel PC with high brightness 15" TFT displays, extremely compact, mainly intended for XP Embedded applications. The three model Single Board Computer options use different processors, allowing for a complete choice that can meet every need in the industrial or building sector.

HIGHLIGHTS

  • LCD display: TFT 15” XGA (1024 x 768) 350cd/sm
  • Wide choice of processors
  • 1 PCI slot

APPLICATIONS

  • Industrial
  • Building automation
Specifications
Processor
  • Intel Celeron M 440 1.86 GHz - FSB 667 MHz - 1MB cache
  • Intel Core Duo 2.0 GHz - FSB 667 MHz - 2MB cache
  • Intel Celeron P4500 1.86 GHz -FSB 800/1066 MHz - 2MB cache
  • Intel i5 520M 2.4 GHz – FSB 800/1066 MHz - 3 MB cache
Memory
  • 512MB to 8GB
Display LCD
  • Colour TFT 15” XGA (1024 x 768) - 350cd/sm
  • Touchscreen: 8 wires resistive
Interfaces
  • 2x K/M PS2
  • 3x RS-232
  • 5x USB 2.0 (one on front)
  • 2x Ethernet 10/100/1000
  • VGA
  • Audio
Slot
  • 1x PCI Half size
SSD Flash Disk
  • C.F. Type I socket
Hard Disk
  • 2,5" SATA
Front Panel Protection
  • IP65
Mounting
  • Panel Mounting
Power Supply
  • 115-230V AC (24V DC optional)
Operating Temperature
  • 0 to +45°C
Humidity
  • 10 to 90% non-condensing
Dimension
  • 388 x 316 x 108 mm (15.28” x 12.44” x 4.25”)
Operating Systems Supported
  • Windows XP Professional®, Windows XP Embedded®
