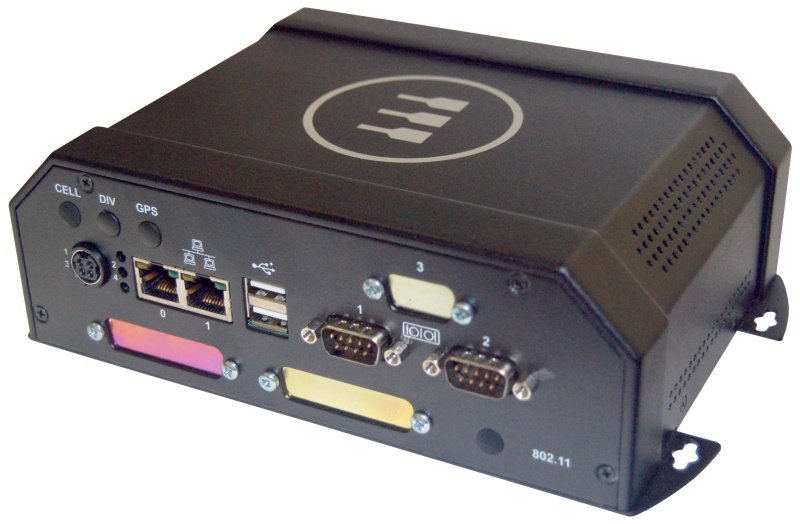

The ZEUS ICE is run by the ZEUS, an ultra-low power, high performance single board computer. The ZEUS board is designed and manufactured by Eurotech Ltd and is based on the Intel XScale PXA270™, 520MHz processor. The ZEUS' functionality is all broken-out to industry standard connectors.
Interfaces
The ZEUS ICE has dual 10/100baseTx Ethernet, onboard 128MB SDRAM, 32MB Flash memory, CompactFlash (CF+) port, two USB 1.1 ports, 2 serial ports and onboard graphics. It can drive a standard VGA analogue display. There is also provision to add PC/104 modules.
The ZEUS ICE also includes a wireless modem and a GPS receiver, and is designed to create cost effective solutions in asset monitoring, asset tracking, mobile terminals and network communication controllers. ZEUS ICE provides real-time network access to any Ethernet, 802.11 or serial device for mobile and fixed data applications.
Mounting:
- Fitted with Eurotech’s ZEUS processor board
- Panel mount
CPU:
Memory:
- SDRAM: 128MB soldered on board
- Flash: 32MB
- CompactFlash (CF+) accessible via removable plate
- SDIO support for MMC/SD/SDIO cards
Video:
- Standard DB15 RGB female option in place on third COM port
Cellular Network:
RF Antenna:
- GSM/GPRS cellular (SMA female)
- GPS (SMA female)
- 802.11b (RP-SMA female)
Security:
- Optional 64/128-bit WEP/WPA data encryption
Watchdog:
- Hardware with start-up or software trigger
Ethernet:
- Dual 10/100BASE-TX controllers
USB:
Serial Ports:
- 2x RS-232
- 1x RS-232/422/485
Expansion:
RoHS:
Power Supply:
Power Consumption:
- 2W typical (excluding 802.11b, cellular and other peripheral devices)
- 5W (approximate average, including 802.11b and cellular)
Mechanical:
- Dimension: 238 x 137 x 65 mm (9.37” x 5.39” x 2.56”)
- Weight: 1.4kg
Operating Temperature:
- -20 to +65°C (without 802.11)
- 0 to +60°C (with 802.11)
Humidity:
Operating Systems Supported:
- Linux 2.6® Eurotech optimized Kernel
