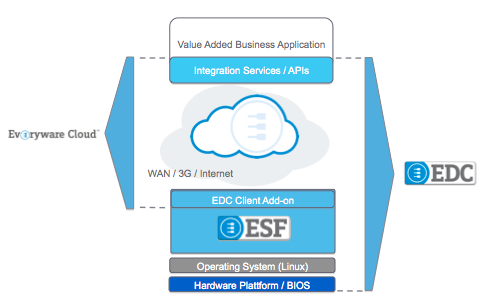

The combination of all required building blocks for designing, implementing, deploying and running M2M (or device to business application) infrastructures, we have named the
Everyware Device Cloud or simply
EDC. EDC seamlessly integrates a broad variety of hardware platforms, operating systems, ESF, the EDC Client and the Everyware Cloud into one complete M2M solution.
3/4 ATR Computer Out
3/4 ATR Aviation Processor with Removable Mass Storage
This rugged, multi-use avionics processor combines Pentium® III performance with removable mass storage media. Sized to 3/4 ATR dimensions with standard j-hooks and bushings for dagger pin installation into an ARINC404A aircraft tray, the system incorporates a hardened aluminum chassis with a convenient front handle and EMI-shielded access door. All signals are brought out to a 150-pin ARINC 600 connector on the rear panel, which offers additional pins for future system expansion, such as for a MIL-STD-1553 multiplexed bus.
Based on modular PC/104 computer boards, the unit integrates a PC/104-Plus single board computer, dual-slot PCMCIA adapter, and a multi-port serial card. Other peripherals include PS/2, USB, Parallel, IDE, 10/100 Ethernet, SXGA flat panel display controller, and NTSC video input. A sturdy aluminum septum plate is positioned above the PC/104 cards to enhance the stiffness of the stack without having to put additional holes in the case for the standoffs.
Its design enables two PC Cards®, as well as two 2.5? IDE/ATA Flash disk cartridges to be easily inserted and removed via its hinged front-access panel. Removable mass storage cartridges incorporate internal shock & vibration isolation material to protect each hard drive and integrate a 48-pin Euro-DIN connector on one end to reliably ensure thousands of mate and un-mate cycles. Corresponding cartridge drive bays utilize Silastic Bumper Beans for further protection from shock/vibration common to aircraft environments.
Processor:
* Intel® Pentium® III 700MHz PC/104-Plus processor
Mass Storage:
* 2 Removable IDE/ATA 2.5" hard disks
Installation:
* J-Hooks and bushings for Dagger Pin mount
Operating System:
* Runs Windows® and other x86 OS
Cooling System:
* Dual forced air cooling system
Video:
* SXGA flat panel display controller with NTSC image capturing (3 Channels)
Expandability:
* PC/104 expandable (2-3 Free Slots)
Seal:
* EMI gasketing around access door
Mobility:
* Font end handle and hinged media access door
Serial Ports:
* 8 Ports RS-232/422/485 serial
1553 DataBus:
* 1553 Dual-redundant multiplex bus
Enclosure:
* 3/4 ATR form factor chassis; fits in ARINC404A shock/vibration tray
Power supply:
* 100-240VAC Input, 5V Output
Rear connector:
* 150-Pin SGA ARINC 600 Slam Home Type
Physical Characteristics
Operating Temperature:
* -25°C to +50°C
Storage Temperature:
* -40°C to +85°C
Weight:
* 9.0 lbs (approx.)
