DuraMAR 5915

Rugged Cisco 5915 Mobile IP Router Subsystem with Integrated Gigabit Ethernet Switch

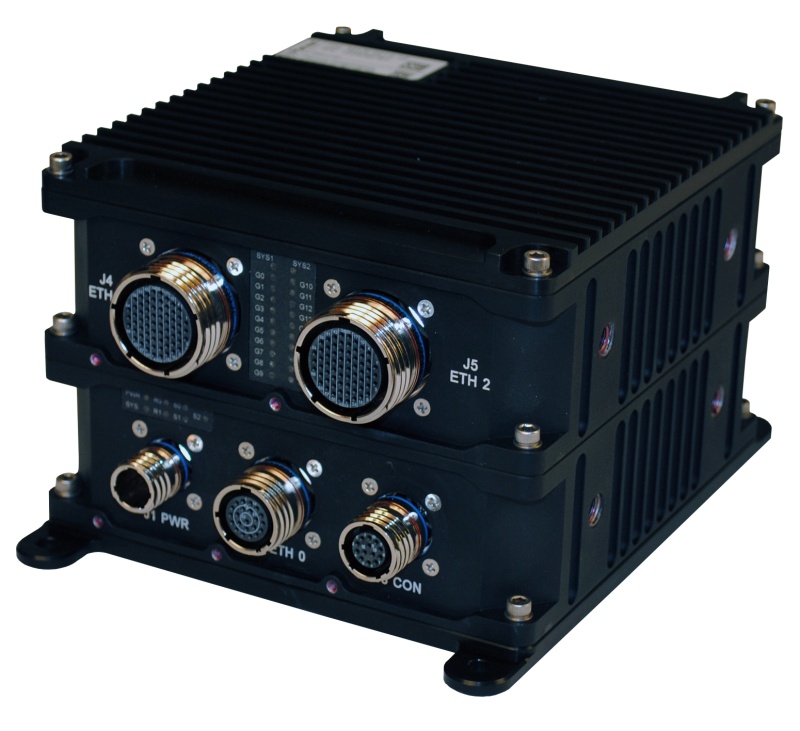

The DuraMARฎ 5915 is a rugged Commercial-Off the Shelf (COTS) Cisco IOS-managed mobile router integrated with Cisco’s 5915 Embedded Services Router (ESR) card in an ultra-rugged chassis optimized for harsh military and civil vehicle / aircraft installations.

HIGHLIGHTS

• Ruggedized Cisco 5915 Router with Enterprise IOS Software
• Modular, Open Architecture Rugged COTS PC104 Hardware Design
• Available as a standalone 5-port network router or with a GbE Switch with 19 Ethernet ports

APPLICATIONS

• Civil and Military Tactical In-Vehicle Switching / WAN Routing
• 24V / 28V Ground Vehicle / Aircraft / Maritime Installations
• C4ISR Situational Awareness / Technology Refresh / Retrofit / LRU
• Defense and Homeland Security
General DescriptionFeaturesSpecifications
An ideal solution for IP networking technology refresh and situational awareness applications, including those seeking a migration path for legacy Cisco 3200 (3230 / 3250 / 3270)-based router subsystems, the DuraMAR 5915 features dual WAN uplinks and is available as either a standalone 5-port network router or with an integrated Gigabit Ethernet switch for a total of 19 Ethernet ports.

Optimized for Size, Weight and Power (SWaP) sensitivity as well as mechanical robustness under extreme environmental conditions and fully certified to MIL-STD-810G (thermal, shock, vibration, humidity, exposure to dust, water), the DuraMAR 5915 enables prime contractors and civilian agencies to deploy Cisco Mobile Ready Net capabilities, including data, video, and voice services virtually anywhere LAN or WAN connectivity may be required, especially in mobile, airborne, ground, manned or unmanned vehicle applications.

Leveraging stackable PC104 subassemblies and a modular enclosure design, the unit is completely sealed, requires no active cooling, provides interfaces over MIL-C-38999 style connectors, and features a military-grade power supply supporting aircraft (MIL-STD-704F) and ground/marine (MIL-STD-1275D) vehicle voltage inputs, spikes, and transient levels, as well as MIL-STD-461F EMI/EMC filtering.

With software built upon the Cisco 3270 IOS architecture, the DuraMAR 5915 delivers the performance, security, advanced Quality of Service (QoS), high availability, and manageability that customers expect from Enterprise IOS-based routing technology. The unit supports extensive IPv4 and IPv6 routing protocols, IP multicasting, Radio Aware Routing (RAR), Dynamic Link Exchange Protocol (DLEP) and Mobile IP routing for transparent connectivity to a roaming vehicle network in Comms on the Move (COTM) applications. An onboard AES hardware encryption engine offloads encryption processing from the router to provide highly secure yet scalable data, video, and voice services.
