The DuraCOR family of Rugged Mobile Computers is a purpose-built mobile system that targets demanding vehicle installations such as those found within rail networks and rolling stock, buses, vessels etc. Due to high integration, the systems are very compact and will withstand the mechanical and temperature stresses commonly encountered in harsh environmental conditions.
One of the fundamental benefits of the DuraCOR family is its inherent modularity and versatility in enclosure form factors. Application specific configurations are easy to implement and our systems design team is ready to assist in the creation of custom systems using standard board-level products manufactured by Eurotech.
Front and Rear Panel Interfaces
The rear panel of the system is dedicated to the field application signal interfacing. The front panel is dedicated to maintenance interfaces that are accessible by removing a protective service panel; this can be done without disconnecting the system from the field.
Thanks to the various I/O interfaces it can be integrated in any location within a vehicle, allowing the connection of various kinds of peripheral.
Eurotech also provide the option to install advanced remote diagnostics and SMS configuration and recovery capabilities within the DuraCOR Family of systems.
CPU:
- Intel® Atom™ 1.6 GHz
- CELERON M™ @ 1000 MHz
- CELERON™ @ 400 MHz
- GEODE GX 466™ @ 333 MHz
Memory:
- RAM: up to 1 GB, depending on CPU
- Flash Memory: up to 4 GB (Disk on module)
- Solid State Disk and/or Automotive class Hard Disk
Standard:
- The Duracor products can be manufactured to be compliant to one or more of the following norms:
- EN 50155 (Humidity, Ambient air temperature, Storage temperature)
- EN 61373 (Vibration & Shock)
- EN 50155 (Power supply voltage interruption, Surges, Isolation resistance)
- EN 50121, EN 61000, EN 55011, ECE ONU reg.10 (Immunity, Emission)
- EN 60950 (Safety)
IP Rating:
WLAN:
- Integrated IEEE 802.11 a/b/g - external antenna
WWAN:
- GSM/GSM-R/GPRS/UMTS/HSDPA/HSUPA
- External SIM holder
- External antenna
GPS:
- 12 channels high sensitivity – external antenna
Audio:
- Stereo Input
- Stereo Output
- Microphone in
Video in:
- 4 Video inputs - Frame Grabber
- 4/8 Video inputs – MPEG-4 compression
- 8 Video inputs – JPEG2000 compression
Video out:
Ethernet:
Serial Ports:
USB:
Other Interfaces:
- CAN bus
- MVB bus
- Isolated Digital Inputs/Outputs
- LEDS: Power on, Power good, 4 User programmable
- Mini-Din for keyboard and mouse
- DB 15 Analog CRT Monitor
- Reset button
- I2C port for status monitor and debugging
Expansion Slot:
Power:
- 9 to 36V DC or 72V DC or 110V DC
Mechanical:

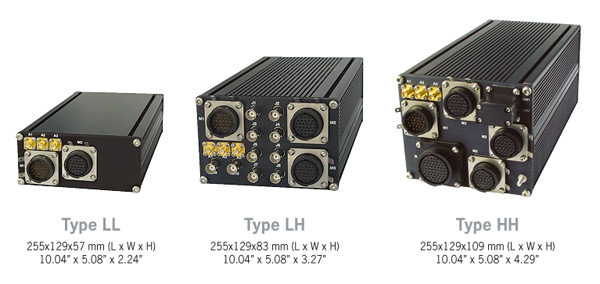

- Low profile – 255 x 129 x 57 mm (10.04” x 5.08” x 2.24”)
- Medium profile – 255 x 129 x 83 mm (10.04” x 5.08” x 3.27”)
- High profile – 255 x 129 x 109 mm (10.04” x 5.08” x 4.29”)
- Weight: from 1.5 to 3 kg
Operating Temperature:
- -25 to +55°C
- +70°C for 10 min
Humidity:
Operating Systems Supported:
- Linux (kernel 2.6)®, Windows CE®, Windows XPE®
Options:
- Eurotech software framework
- Cable set with standard connectors for an easy peripherals and I/O connection
- Wi-Fi dual band antenna
- GPS magnetic mount antenna kit
- HSDPA 5 band antenna kit
