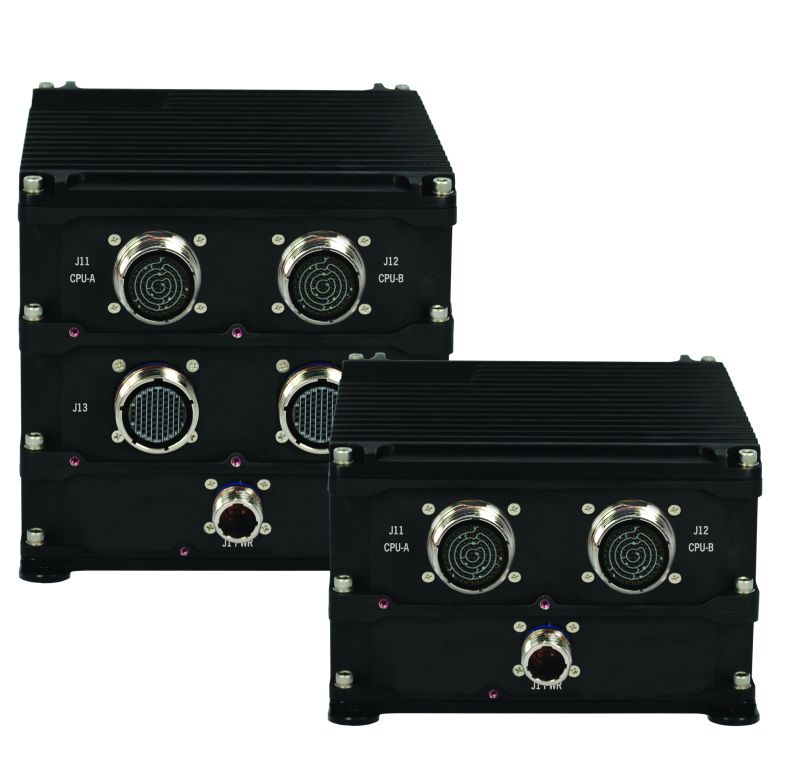

Delivering new capabilities for C4ISR command & control, image processing and surveillance requirements, the DuraCOR 80-40 features modular interlocking chassis segments with pre-installed MILDTL-38999 connectors and an internal power/control bus to ease the integration of application-specific PCIe/104 or PCI/104-Express I/O cards and meet high-speed mission payload I/O requirements.

Standard I/O includes 2x Gigabit Ethernet, 6x USB, 2x RS232, 16-bit GPIO, dual display outputs (Analog, DVI), stereo audio, PS2, and a stackable PCIe/104 bus. The unit mounts either horizontally or vertically and supports factory integration of the Cisco IOS-managed DuraMAR 5915 router and/or application I/O into a single appliance combination of computer + router + switch + application I/O.

The DuraCOR 80-40 is completely sealed (IP67), requires no active cooling, includes a military-grade power supply supporting aircraft (MIL-STD-704F) and ground vehicle (MIL-STD-1275D) voltages, and features a hinged panel on the rear with two slots for removable 2.5” SATA Solid State Disks (SSD). Parvus application engineering services are available to support semi-customized configurations, including mechanical changes and pre-integrated PCIe/104 I/O cards.

HIGH PERFORMANCE CPU:
• Intel 2nd Generation Core i7 (Sandy Bridge) Processor, 2.2 GHz , Dual-Core, 4-8 GB
DRAM with Integrated GPU and Advanced Vector Extensions (AVX) Signal Processing

CONNECTIVITY & I/O:
• 2x Gigabit Ethernet 10/100/100 Mbps LAN Interfaces
• 6x USB 2.0, 2x RS-232 Serial, 16x Discrete DIO
• Analog Video, Digital DVI, Stereo Audio, PS2
• Dual Slots for Removable 2.5” SATA Solid State Disks (on Rear)
• Other I/O Configurations by Special Order (i.e. MIL-STD-1553/429)

RUGGED MECHANICAL DESIGN
• Designed for MIL-810G Shock, Vibration, Thermal, Altitude, Humidity
• -40 to +71C Fanless Extended Temp Operation with No Moving Parts
• Corrosion-Resistant, Aluminum Chassis Sealed Against Water, Dust, EMI
• Sealed, Hinged Panel on Rear for Dual Removable SATA SSD Storage
• Circular MIL-DTL-38999 Connectors for Reliable I/O Connections
• Filtered, Transient-Protected Power Supply for Aircraft and Vehicle Use
• Designed to MIL-461F Conducted/Radiated Emissions & Susceptibility
• Conformal Coating for Humidity/Tin-Whisker Mitigation
• Flexible / Robust Mounting – Base Flange Mount or Side Boss Mount

MODULAR / EXPANDABLE
• Modular Interlocking Chassis Design Supports Stackable PCIe104 I/O Card Expansion
for High Speed Interconnect (2-3 Card Slots Per Expansion Chassis Segment)
• Pre-Installed MIL-38999 Connectors and Internal Power/Control Bus Ease Integration of
PCIe/104 or PCI/104-Express Cards by Parvus Factory
• Factory Mateable w/DuraMAR 5915 Router for Computer + Router + Switch Appliance

HIGH PERFORMANCE PROCESSOR
• Intel Core i7-2655LE (Sandy Bridge), Dual Core, Quad Thread Support, 4MB L3 Cache, 64-Bit Instruction Set, Intel BD82QM67 Platform Controller Hub, Intel HD Graphics 3000, 256-bit Advanced Vector Extensions (AVX)
• 2.2 GHz Clockspeed (2.9 GHz w/ Intel Turbo Boost 2.0) with Support for Intel vPro, Intel Hyper-Threading, VT Hardware Assisted Virtualization, Intel Fast Memory Access, Enhanced SpeedStep Technologies

RAM MEMORY
• 4 / 8 GB DDR3-1333 MHz
SOLID STATE DISK
• Support for Up to Two Removable 2.5” Form-Factor Serial ATA (SATA) Solid State Disks (SSDs) – 32 / 64 / 128 / 256 GB Capacity, Single Level Cell (SLC); Special Order Media Options Available for Fast Purge / Sanitize Capable SSDs
• Sealed, Hinged Door on Rear Panel Enables Removal of Storage Media
OPERATING SYSTEM
• Pre-installed Linux or Special Ordered with Windows 7 or Windows Embedded / Real-Time Operating System
• Hardware Compatible w/x86 Embedded / RTOS ; VxWorks Board Support Package (BSP) Roadmapped
BUS ARCHITECTURE
• PCIe/104 (PCIe v2.0, Type 1) bus, 2.5 / 5.0 GT/s – 4x1 and (either 1x16 / 2x8 / 1x8 and 2x4) Lanes
• Supports Integration with Stackable PCIe/104 and/or PCI/104-Express I/O Cards Natively; PCI-PCIe Bridge Adapter Required to Support PCI-104 and/or PC/104-Plus I/O Cards
EXPANSION I/O SUPPORT
• 2-3 Card Slots Available for PCIe104 or PCI104-Express Cards per Expansion Chassis Segment Added to Base System
• Each Chassis I/O Expansion Ring Include 132 Spare I/O Pins on Pre-Installed DTL-38999 Connectors
• Integrated Power and Control Bus Connects Each Chassis Segment - Supports Capabilities for Isolated 5V/3.3V/12V Power, Ethernet, Serial, and Zeorize Signals to Expansion I/O Modules
• Approx. 100 Watts of Power Available for Expansion Cards Added to System
NETWORK
• 2x Gigabit Ethernet LAN Interfaces (10/100/1000Mbps)
SERIAL
• 2x EIA RS232 Serial Ports, 250 Kbps Max
USB
• 6x USB 2.0 Ports
VIDEO
• Analog Video Output (up to 2048x1536 pixels)
• DVI Digital Video Output (up to 1920 x 1200 pixels)
AUDIO
• AC97 Stereo Audio
DIO
• 16-bit Discrete General Purpose I/O
PS2
• PS2 Keyboard/Mouse Ports
POWER
• 28V Nominal Power Input Voltage (9-36 VDC Continuous <100 W Systems; 18-36 VDC for up to 150W Systems)
• Reverse, Over Voltage, 250V Spike, 100V Surge-Protected (MIL-STD-704F and MIL-STD-1275D Compliance)
• Approx. 50 W Max Power Dissipation (Base Unit); ~100 W Available for I/O Expansion Modules
• Grounding Lug for Connection to System Chassis Ground
• Battery for Real-Time Clock Maintains Time/Day for Estimated 10 Years
• LED Power Status Indication
SPECIAL ORDER OPTIONS
• Breakout Cable for User Defined Expansion I/O (J13, J14) with Subsystem Integration
• Data Device Corp (DDC) MIL-STD-1553 Databus Controllers (1 to 4 channels)
• Other Integrated PCI-104/Express or PCIe104 I/O or Datacom Modules
• Integrated Cisco IOS-Managed Mobile Router or Network Switch (DuraMAR 5915 Router/Switch)
• 38999 Connector Caps, Mechanical Changes, Custom Metal Finishes
• Program-specific Mil-Certifications / Environmental Testing

Physical Characteristics

PHYSICAL
• Weight: ~ 6 lbs (~2.7 kg) Base System; Approx. 9 lbs (~4.1 kg) with I/O Expansion Chassis
• Dimensions (H x W x D, Excluding Connectors/Mounts): Base Unit (CPU+PSU+SSD): ~ 4.05” H x 6.25" W x 7.32” D (~10.29cm H x ~15.88cm W x ~18.59cm D); Expansion I/O Segments add 2.0” (5.08 cm) Height
• Chassis: Aluminium Alloy, Corrosion Resistant
• Finish: Black Anodize Finish per MIL-A-8625, Type II, Class 2
• Connectors: MIL-DTL-38999 Series III
• Installation: Base Flange Mount or Side Boss Mount (90° Rotated Orientation)
• Cooling: Natural Passive Convection/Conduction. No Moving Parts
RELIABILITY
• No Moving Parts; Passive Cooling; Conformal Coated Boards for Humidity and Tin Whisker Mitigation
• MTBF: TBD Calculated per MIL-HDBK-217F
ENVIRONMENTAL
Designed to Meet MIL-STD-810G: (Formal Qualification Testing Pending)
• Operating Temperature: Target of -40 to +71C (-40ºF to +160ºF) Ambient
• Storage Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
• Operating Shock: 40g, 11ms, 3 pos/neg per axis, 18 terminal peak sawtooth pulses (MIL-STD-810G, Method 516)
• Crash Safety Shock: 75g, 11ms, 2 pos/neg per axis, total 12 sawtooth
• Random Vibration: 3 Axes, 1 Hour/Axis (MIL-STD-810G, Method 514, per Jet- Helo and Tracked Vehicle Profiles)
• Humidity: Up to 95% RH @ 40C, Non-Condensing (Conformal Coated) • Water Immersion: 1 Meter Submersion, 30 Minutes (Similar to IP67)
• Dust Ingress: Designed for Compliance w/Method 510.4, No Dust Ingress
• Operating Altitude: Up to 30,000ft (9,144 meters); Thermal De-rating May Apply
• Storage Altitude: Sea Level to 60,000 ft (18,288 meters)
EMI/EMC ISOLATION
Designed to Meet MIL-STD-461F (Qualification Testing Pending):
• Conducted Emissions, CE102, Power Leads, 10 KHz to 10MHz, basic curve
• Conducted Susceptibility, CS101, Power Leads, 30 Hz to 150 KHz, Curve 2 (28V and Below)
• Radiated Emissions, RE102, Electric Field, 10 KHz to 18 GHz, Figure RE102-3
• Radiated Susceptibility, RS103, Electric Field, 2MHz to 18 GHz, 200 Volts per Meter
STARTER CABLE SET
• Starter Cable Set Provides Mating DTL38999 Connectors that Break-out I/O from CPU (on J11, J12) and Power Input (on J1) to Standard PC Style Interfaces for Lab or Bench Testing Purposes
WARRANTY
1 Year RTF Warranty (Extended Service Contracts Available)
