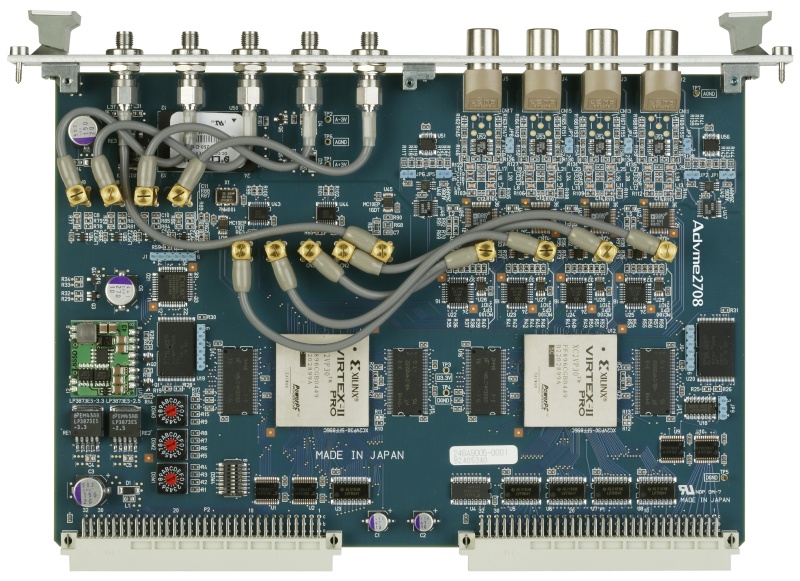

The Advme2708 is a D/A board that performs fast wave generation as it works at 240 MSPS(Mega Samples per Second). It has 4 input channels each with a DAC.
Other Features:
The board features high resolution (14 bit), large buffer-memory (4 MW/CH), wide bandwidth and high SINAD (Signal-to-noise and distortion) value.

Architecture:

• VME compliant

Analog Channel:

• Number of output channels: 4
• Full scale level ±1V /100Ohm Balanced (1)
• Analog bandwidth: d.c. 30MHz (-3dB) linear-phase

Sampling Clock:

• Clock rate:

  -240 MHz max (with external clock source)
  -100 MHz fixed (on-board clock source)

• External clock level: 0dBm/50Ohm (SMA)

Trigger Signal:

• Number of trigger inputs: 2
• Trigger period: 0.1 to 20 ms
• Trigger signal level: 0.8 Vp-p/50Ohm (SMA)
• 2048(max) points output by each trigger

Buffer Size:

• 4 MW/CH

Bus:

• VME bus
• Width complies with: A32 D32 Rev.C.3
• Slave mode

Mechanical:

• Dimensions: 6U – 262 x 172 x 20 mm (10.31” x 6.77” x 0.79”)
• Pitch: Single slot – 20.02 mm (0.79”)

Operating System Supported:

• VxWorks®

Options:

• 50Ohm unbalanced output
