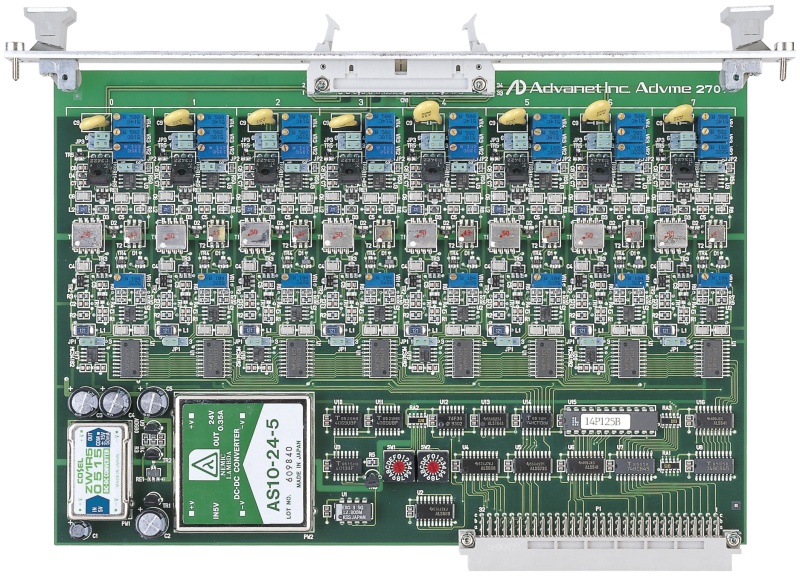

The Advme2701 is a 12-bit resolution analog output VME board with 8-channel I/O.
Output range can be set to ±10V, ±5V, 0 to 10V, 0 to 5V or 0 to20mA for each channel.
Isolation
Each channel is isolated with a transformer.
Other Features
Operates from a single +5V power supply by VME bus.
Device driver for VxWorks is available as an option.
It is capable of outputting current between 0 to 20mA without an external power supply.

Architecture:

• VME compliant

Analog Output:

• Number of channels: 8 channels
• Output range: 0 to 5V, 0 to 10V, ±5V DC, ±10V DC, 0 to 20mA (can be set for each channel)
• Output current: up to 10mA

D/A Conversion:

• Resolution: 12-bit, 0.1% FS
• Conversion time: 1ms per channel
• Overall accuracy: ±0.1% (F.S. at 25°C)

Isolation:

• Method: transformer
• Withstanding voltage between I/O and channels: 1500V AC for one minute

Output Connector:

• MIL-type 34-pin header

Bus Interface:

• VME bus
• Width complies with A16 D16/D08(EO) Rev.C.3
• Accessible using AM codes 29H and 2DH

RoHS:

• Compliant

Power Supply:

• Single +5V DC

Power Consumption:

• 7.5W max

Mechanical:

• Dimensions: 6U – 262 x 172 x 20 mm (10.31” x 6.77” x 0.79”)
• Pitch: Single slot – 20.02 mm (0.79”)
• Weight: 370g typical

Operating System Supported:

• VxWorks®

Options:

• Device driver for VxWorks®
