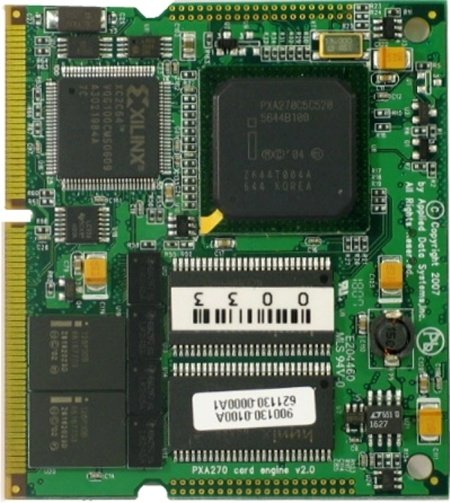

The TurboXb is a full-featured, application-ready module using the PXA270™ XScale RISC microprocessor. It is designed to integrate with an application-specification solution board for a total production solution.
Customization
When a high performance and cost-effective solution is needed for your next integrated embedded project, adopting the TurboXb offers an accelerated route to market by eliminating the time and risk involved in the complex design of the processing core, leaving you to concentrate on the application code and I/O design unique to your requirement.

Architecture:

• SO-DIMM CPU core

CPU:

• Marvell® PXA270™ up to 520 MHz

Memory:

• DRAM: up to 128 MB
• Flash: up to 64MB
• SD/MMC interface (connector available on adapter board)

USB:

• 1x USB 1.1 host port
• 1x full speed client port

Serial Ports:

• 3x EIA-232

Ethernet:

• 1x 10/100Mbps Ethernet
• RJ-45 connector

Video:

• 24-bit color LCD to SVGA
• four-wire analog-resistive touch panel interface with backlight controller

Audio Interface:

• AC 97 codec

Other Interfaces:

• IC2 bus
• SSP interface

Real Time Clock:

• Battery backed

RoHS:

• Compliant

Power Supply:

• Single +5V DC

Mechanical:

• Dimension: 68 x 60 mm (2.7” x 2.4”)

Operating Temperature:

• 0 to 70°C (standard)
• -40 to 80°C (extended)

Operating System Supported:

• Windows CE®, Linux®
