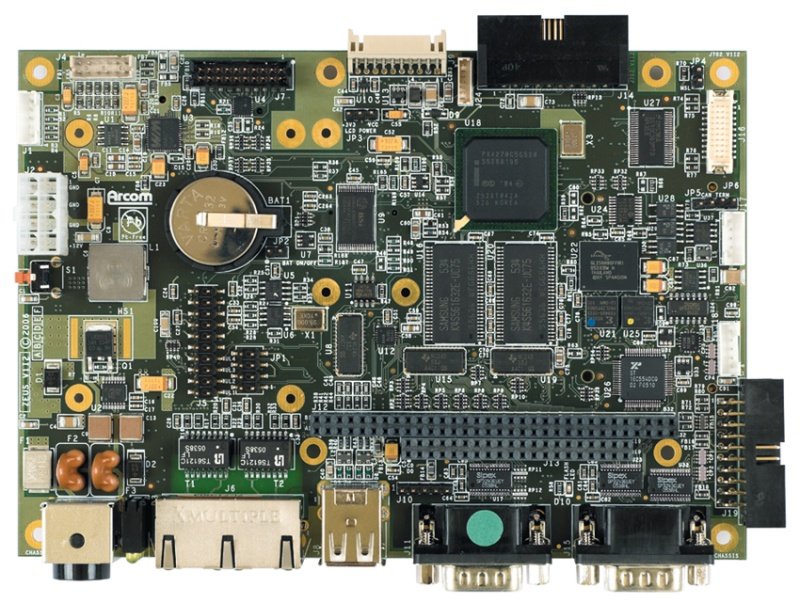

The ZEUS is an ultra low power EPIC size single board computer based on Marvell's 520MHz PXA270 XScale® RISC processor. The PXA270 is an implementation of the ARM compliant, Intel® XScale microarchitecture combined with a comprehensive set of integrated peripherals including, a flat panel graphics controller, USB host/client controller, interrupt controller and multiple serial ports.
The ZEUS also includes a site for a variety of wireless modems and a GPS receiver.

Architecture:

• EPIC

CPU:

• PXA270 XScale 520MHz
• PXA270 XScale 416MHz

Memory:

• Up to 256 MB on board SDRAM
• Up to 64MB of soldered AMD MirrorBit Flash
• 256kB of battery backed SRAM (using onboard battery)
• SD/SDIO/MMC card socket

Graphics/Video:

• 4/5-wire analog touchscreen controller
• 16 buffered digital I/O, Intel Quick Capture Camera Interface
• TFT/STN/LVDS flat panel support

Audio:

• AC97 audio controller

Bus:

• 16-bit PC/104

I/O Interfaces:

• 2x10/100baseTx Ethernet
• 2x RS232
• 1x RS232/RS422/RS485
• 1x RS422/485
• 2x USB 1.1
• 1 x cellular modem expansion port
• 1 x GPS receiver expansion port
• 1 x IEEE802.15.4/ZigBee expansion port
• CompactFlash+ (I/O)
• Expansion sites for wireless modems and GPS receivers
• Microchip MCP2515® - CAN 2.0B controller & opto-isolated transceiver

Real Time Clock:

• On board

RoHS:

• Compliant

Power Supply:

• +5V DC (8-pin ATX style connector)
• 10-30V DC (front panel connector)

Operating Temperature:

• -20 to +70°C (standard)
• -40 to 85°C (extended)

• Modem and GPS receivers
• Development kit
