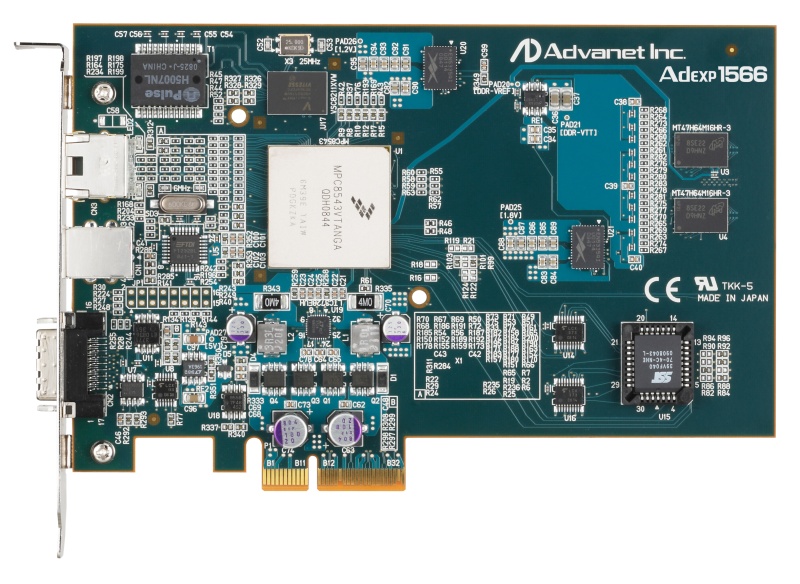

This board has a bridge function from PCI Express to Serial RapidIO.
Freescale® MPC8543™ is adopted as the bridge and InfiniBand connectors are used for the Serial RapidIO connectors.
Cables
Both metal and optical cables for InfiniBand can be used as a transmission cable. Cable can be extended up to 7m with metal cable and up to 100m with optical cable.

Architecture:

• PCI Express

Bridge:

• Freescale® MPC8543™ (800MHz)

Front Panel I/O:

• Serial RapidIO: x4 metal connector and optical cables are used for InfiniBand
• USB: type-B connector, connect to UART with MPC8543™ by using USB/UART bridge

PCI Express:

• Standards. PCI Express base specification Rev.1.0a
• PCI Express card electromechanical specification Rev.1.2
• Lane: x4 (2.5Gbps)

RoHS:

• Compliant

Power Supply:

• +12V DC
• +3.3V DC

Power Consumption:

• 9.6W max (+12V DC)
• 4.95W max (+3.3V DC)

Mechanical:

• Form factor: half size
• Dimension: 111.15 x 167.65 mm (4.38” x 6.60”)

Operating Systems Supported:

• Windows NT®, Windows 2000®, Windows XP®
