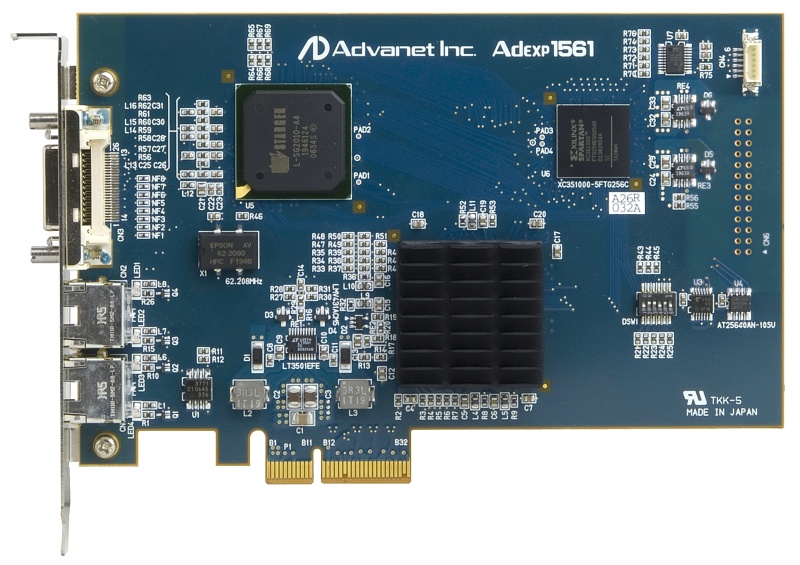

The AdEXP1561 is a PCI Express-compatible StarFabric bridge board. This DMA controller embedded board enhances the speed of data transfer between PCI Express and StarFabric.
Device Driver
StarGen® device driver and utility program are capable of running directly by virtue of the StarFabric bridge chip that is connected to PCI Express via the transparent PCI/PCI bridge.
DMA Controller
This DMA controller-embedded board enhances the speed of data transfer between PCI Express and StarFabric. The DMA controller is capable of high-speed data transfer downward (in the direction of data transmission to the StarFabric network). An integrated 4 Kbyte relay data buffer permits processing of data reading from host memory and writing to StarFabric bridge via efficient burst transfer.

Architecture:

• PCI Express

PCI Express lanes:

• x4 lane

PCIe bridge device:

• SG2010®

Number of Star Fabric Ports:

• 2 ports

Star Fabric Connector:

• 2x RJ-45
• 1x MDR

RoHS:

• Compliant

Power Supply:

• Single +12V DC

Mechanical:

• Form factor: half size
• Dimension: 111.15 x 167.65 mm (4.38” x 6.60”)

Operating Systems Supported:

• Windows NT®, Windows 2000®, Windows XP®
