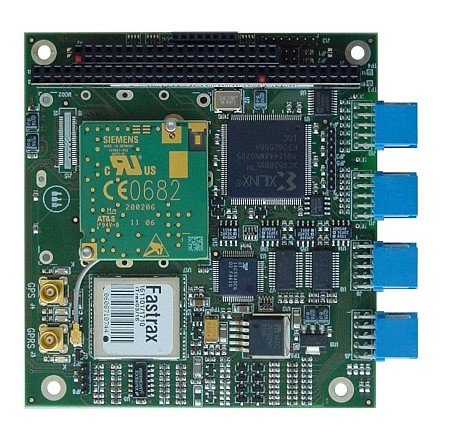

The Eurotech COM-1289 integrates GSM/GPRS (optionally GSM-R) wireless cellular connectivity and a low power GPS receiver within a PC/104 module. This low power integrated telematics board is the ideal choice for onboard computing applications requiring GPRS roaming across three continents and precise GPS positioning.
A standard SIM-card can be installed onboard into a locking card holder, or onto an external SIM card carrier.
Modem
The COM-1289 is available with the Fastrax® iTrax03™ 12-channel GPS receiver and the Siemens® MC55™ GSM/GPRS modem, or as option the Selex® RGM101™ GSM-R modem.GSM-R is widely used in rail and rolling stock system devices throughout Europe and Asia.
Setup
The setup information is stored in a non volatile EEPROM that is loaded upon power-up. Reconfiguring your COM-1289 is easy even after the system is completely assembled. The board supports full interrupt sharing for all the serial ports.
Interfaces
Onboard features include a 4-channel 16C550 compatible UART with two multistandard RS-232/422/485 serial ports are free for other devices, while two ports are reserved for the onboard cellular GPRS modem and GPS receiver. Board configuration is performed in software eliminating banks of configuration, interrupt and base address jumpers.

Architecture:

• PC/104 compliant

Configuration:

• Setup stored on EEPROM
• Jumperless configuration (addresses and IRQs)

Main GPS Features:

• Fastrax® iTrax03™ 12-channel low power GPS receiver
• L1 frequency, C/A code (SPS)
• Update rate: 1fix/s (user configurable up to 3 Hz)
• Accuracy:

  -Position: 1.2m (CEP95)
  -Velocity: 0.1m/s
  -Time: 20ns rms (static mode)

• Reacquisition: 100ms (typical)
• Tracking sensitivity: -156 dBm
• Support for +3.3V active & passive external antennas
• Protocols: NMEA-0183 and proprietary iTalk™ binary protocol
• 2x GPS status LEDs

Main GPRS Features:

• Siemens® MC55™ 900/1800/1900MHz GPRS modem
• Onboard or external 3V SIM card
• GPRS downlink data rate up to 85,6kbps
• 14,4kbps GSM data, group 3, class 2 fax services
• SMS and SMS cell broadcast
• GPRS mobile station class B and GPRS multi slot class 10 compliance
• WAP and MMS compliant
• Output power class 4 (2W) at 900MHz and class 1 (1W) at 1800/1900MHz

Main GSM-R Features:

• Selex® RGM101™ GSM-R module
• Onboard or external 3V SIM-card interface
• GPRS features:

  -Multi-slot capabilities: 4+1 max (class8)
  -Coding: CS1, CS2, CS3, CS4

• Output power:

  -class 4 (2W) GSM-R
  -class 1 (1W) DCS

• Sensivity: -102 dBm
• Frequency Band:

  -UIC:
    UPLINK (MHz) 876 - 880
    DOWNLINK (MHz) 921 - 925
  -E-GSM:
    UPLINK (MHz) 880 - 915
    DOWNLINK (MHz) 925 - 960
  -DCS:
    UPLINK (MHz) 1710 - 1715
    DOWNLINK (MHz) 1805 - 1880

RoHS:

• RoHS (2002/95/CE) Compliant
• Replacement for COM-1283 and COM-1288

Antenna starter kits:

• GPS and GSM antenna connectors: MCX type
• Available with magnetic mount GSM/GPS antennas:

  - ACS-9110-00 (3-band GSM antenna kit) Refer to Technical Datasheet Td0019
  - ACS-9111-00 (GPS antenna kit) Refer to Technical Datasheet Td0006

Serial Ports:

• 2x RS-232/RS422/RS485 (16C550 compatible)
• 2x two serial ports used by GPRS and GPS

Audio:

• I/O port for headset

Bus:

• PC/104 (ISA)

Power supply:

• Single +5V DC

Power consumption:

• 1.1 W typical
• 3.2 W max

Mechanical:

• Dimensions: 90 x 96 mm (3.6" x 3.8")
• Height: 15 mm (0.6”)

Operating temperature:

• -20 to +55°C (for GPRS)
• 70°C auto-switch off (for GPRS)
• -40 to +85°C (for GPS)

Humidity:

• 0 to 95% non-condensing

MTBF:

• 160,000+ hours (MIL-STD-217 @ GB-25°C)

Supported Operating System:

• WinCE® and Linux®

Options

• Conformal coating
• Selex® RGM101™ GSM-R radio modem

• Antenna kit
