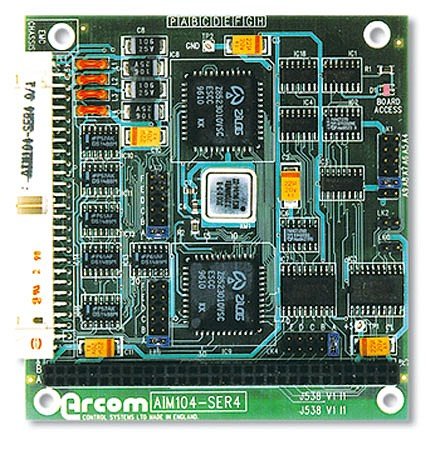

The AIM104-SER4 is an 8-bit PC/104 module providing four channels of RS232 serial ports. It is based on the 85230™ Enhanced Serial Communications Controller and is capable of RS232 signaling standards. Every channel can be independently configured for asynchronous and synchronous protocols, baud rate and signaling standard. High speed communications can be achieved up to 57.6kBaud (asynchronous) or 921kBaud (synchronously).

Architecture:

• PC/104

Serial Ports:

• 4-ch RS232 from two Zilog® 85230™ Enhanced SCCs (4byte Tx FIFO; 8byte Rx FIFO)
• Each channel configurable for asynchronous or synchronous, baud rate & signalling standard
• 57.6KBaud asynchronous
• Synchronous data rates to 921KBaud
• Link-selectable interrupts (IRQ 3, 4, 5, 6, 7)
• Module access LED
• RS232 modem data lines TxD, RxD
• RS232 modem control lines CTS, RTS, DTR, DCD
• Base address range: 0 to 3F0 hex
• I/O space required: 16 bytes
• I/O Connector: 50-way Ribbon

Bus:

• IEEE 996 bus interface 8-bit PC/104

Power Supply:

• +5V DC
• +12V DC
• -12V DC

Power Consumption:

• 0.75W (+5V DC)
• 0.6W (+12V DC)
• 1.2W (-12V DC)

Operating Temperature:

• -20 to +70°C

MTBF:

• 235,000 hours

Software Support:

• FREE Integrated I/O 'C' Library on disk
