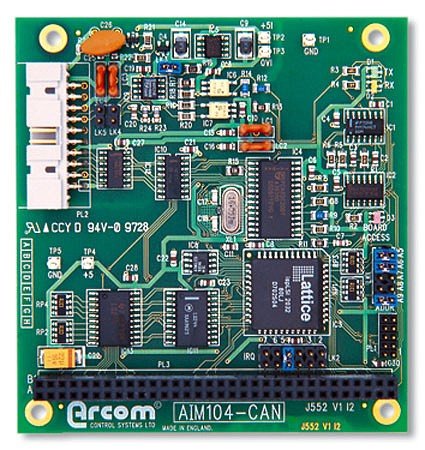

The AIM104-CAN is an 8-bit PC/104 module providing a single channel, optically isolated, Controller Area Network (CAN) interface. In addition, the board is fitted with an EEPROM for configuration information and an output port for driving three bi-colour LED’s.
Controller
It has a Philips® 82C200™ controller, and supports CAN ISO 11898 network connection (CAN 1.1 and 2.0a). It supports a 1Mbit/s Baud rate. CAN termination is onboard link-selectable.

Architecture:

• PC/104 compliant

Flash:

• 128 byte serial EEPROM for parameter storage

Controller Area Network Interface:

• Philips® 82C200™
• Single channel opto-isolated
• Supports CAN 11898 network connection (CAN1.1 and 2.0)
• Up to 1Mbit per sec baud rate
• Onboard link-selectable CAN termination network

LED:

• Module access LED
• Three bi-colour diagnostic LEDs, driven by output port

Interrupts:

• IRQ 2, 3, 4, 5, 6, 7

Base Address Range:

• 0 to 3Eo hex

I/O Address Space:

• 32 bytes, link-selectable base address

Bus Interface:

• PCI/104 (ISA)

Power Supply:

• Single +5V DC
• +9 to +27V DC

Power Consumption:

• PC/104 interface: 180mA (typ) @ +5V, 0.9W typical
• Isolated CAN): 50mA (max) @ 9 to 27V, 1.35W max

Operating Temperature:

• -25 to +70°C

MTBF:

• 550,000+ hours (MIL-HDBK-217F @ ground benign)

• DeviceNet compatible breakout module
