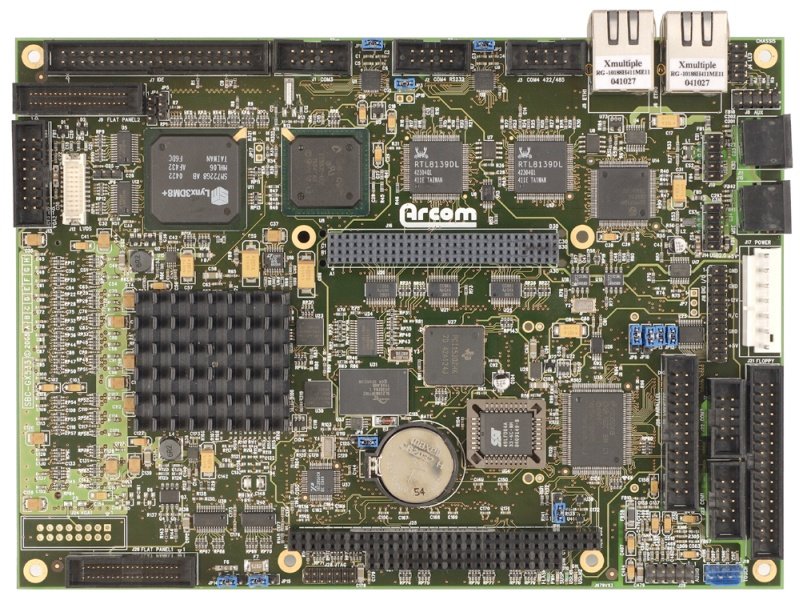

The SBC-GX533 is a low profile, fan-less, RoHS compliant 5.25" form factor board, based on the AMD Geode GX 533@1.1W processor. All the standard PC interfaces accompany this board along with a full range of multimedia features and on-board graphics which enables a standard analog display or a TFT flat panel.
Interfaces
It features several interfaces such as dual 10/100baseTx Ethernet, 32Mbyte Flash drive, CompactFlash port, four USB ports, four serial ports and analogue touchsreen interface.

Architecture:

• 5.25" form factor

CPU:

• AMD® Geode GX533™ 400MHz
• Integrated CRT or TFT graphics controller

Memory:

• Up to 512 MB 266MHz DRAM (SO-DIMM soldered inside)
• Up to 32MB onboard AMD MirrorBit™ Flash Memory
• 256kB battery-backed SRAM
• CompactFlash (CF+)

Video:

• Dual display with TFT/DSTN/CRT support

Touchscreen:

• 4-wire analogue touchscreen controller (UCB1400)

Audio:

• AC97 Audio CODEC

Ethernet:

• Dual 10/100baseTx Ethernet

Serial Ports:

• 3x RS232
• 1x RS232/RS422/RS485

USB:

• 2x USB 2.0
• 2x USB 1.1

Integrated Security:

• Atmel AT97SC3201 (TPM)

User Jumpers:

• 2x user selectable jumpers

Other Interfaces:

• IDE ATA-66 hard drive port
• Floppy drive and USB
• 1 EPP/ECP bidirectional
• Mouse
• Keyboard ports
• 8-bit (TTL) digital I/O port

Expansion:

• PC/104+ (PCI 32-bit)
• PC/104 (ISA 16-bit)

RoHS.

• Compliant

Power Supply:

• Single +5V DC

Power Consumption:

• 9W typical

Mechanical:

• 5 ¼ form factor
• Dimension: 203 x 146 mm (7.99” x 5.75”)

Operating Temperature:

• 0 to +60°C (standard)
• -20 to +60°C (extended)

Operating Systems Supported:

• Linux®, Windows CE® 5.0, Windows XP Embedded®

• Development kit
