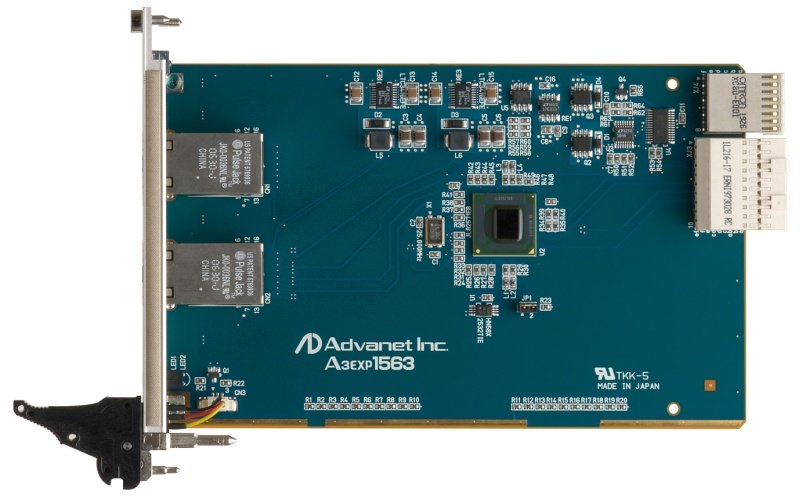

A3EXP1563

CompactPCI Express board with 2ch Gigabit Ethernet, 3U size

The A3EXP1563 is a Gigabit Ethernet board that supports the CompactPCI Express standard and it is equipped with two 10/100/1000 Base-T Ethernet ports.

HIGHLIGHTS

  • Two 10/100/1000 Base-T Ethernet ports
  • Intel® 82571EB™ Ethernet controller
  • Integrated 48kB transceiver packet buffer (for each channel)
  • Supports 9kB jumbo frames
  • Supports auto MDI-X
  • WOL-compatible board that is capable of wake-up signal output upon reception of magic packets (Only available when standby power is supplied)

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
General DescriptionFeaturesSpecificationsAccessoriesEfficiency

The A3EXP1563 is a Gigabit Ethernet board that supports the CompactPCI Express standard and it is equipped with two 10/100/1000 Base-T Ethernet ports. Peripheral board Type 2 is adopted as a CompactPCI Express board that can be used for ×4 and ×1 lanes. The front panel is compatible with 6U and 3U form factor with 1-slot width.
