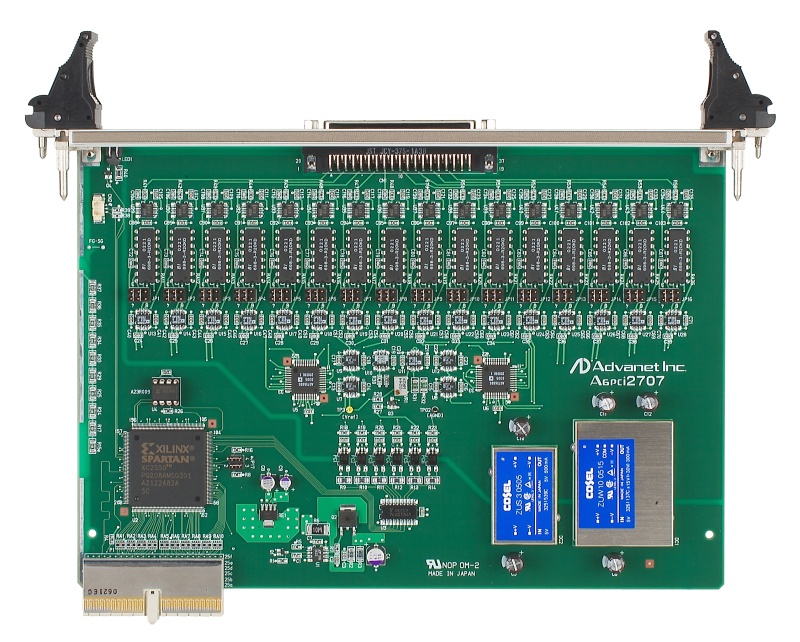

The A6pci2707A is a 16-channel D/A board that has 12-bit resolution and features 16 analog outputs.
Output Features
Output voltage range can be set to ±10V, 0 to 10V or 0 to 5V for each channel. When the power is turned on and when reset is performed, the output voltage is forced to 0V for all channels.
Two-layer output buffer for refreshing the output voltage for each channel individually or for all channels at once.
Isolation
Analog output and digital system isolated by photo-coupler.

Architecture:

• CompactPCI

Analog Output:

• Number of channels: 16
• Input voltage range: ±10V, 0 to 10V or 0 to 5V
• Isolation method: photo-coupler isolation (no isolation between channels)
• Withstanding voltage 500V AC for one minute
• Protection circuitry: overvoltage protection circuitry
• Connector: 37-pin D-sub connector (female)

D/A Conversion:

• Resolution: 12-bit
• Overall accuracy: ±0.3%
• Conversion time: 10µs per channel
• D/A converter: Analog Devices® AD7568™

Bus:

• PCI local bus specification Rev.2.2 compliant
• PICMG 2.0 R3.0 CompactPCI specification compliant
• PICMG 2.1 R1.0 CompactPCI hot swap specification

Power Supply:

• +5V DC
• +3.3V DC

Mechanical:

• Dimensions: 6U – 160 x 233.35 mm (6.30” x 9.19”)
• Pitch: Single slot – 20.02 mm (0.79”)

Operating Systems Supported:

• VxWorks®, Windows NT®, Windows 2000®, Windows XP®
