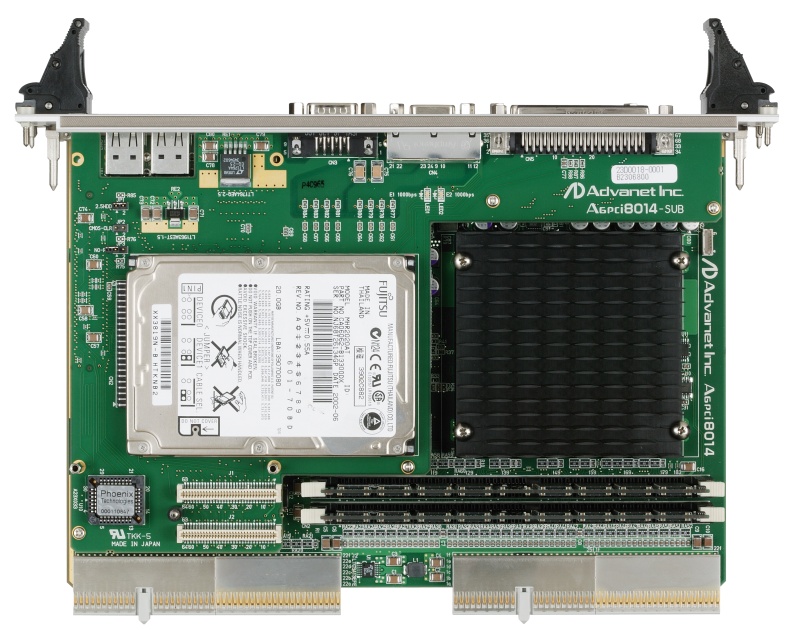

A6pci8014 is a CompactPCI CPU board equipped with the Intel® Pentium M™ processor. Intel® 855GMCH™ features the memory control hub while the Intel® ICH4™ is used as an I/O control hub. It has double slot pitch.
Memory
Main memory is expandable up to a maximum of 2GB with a DDR-DIMM conforming to PC2700 (DDR333). It supports ECC which can automatically correct single bit data errors and offers high speed and high dependability.
PMC
A PMC slot (PCI Mezzanine Card)is provided to allow the expansion by add-on boards.
I/O Interfaces
The chipset support legacy devices through an RS232C serial port and a parallel port. It features also an abundance of peripheral devices, including 2.5" HDD interfaces supporting the Ultra ATA/100, USB 2.0, gigabyte Ethernet, and so on. Moreover, peripheral interfaces can be connected through the dedicated rear panel I/O port, except from Ethernet connector.
Architecture:
CPU:
- Intel® Pentium M™ processor at 1.8GHz
- L1 cache: 32kB data, 32kB instructions; L2 cache 1MB
Memory:
- Two DDR-DIMM slots supporting PC2700(DDR333): up to 2GB with ECC support
- BootROM: firmware hub flash 2MB
- SerialEEPROM 2kb I2C
Bridge Chip:
- Intel® FW21154AE™
- Functions: dedicated system slot transparent bridge, provides board reset function (PRST# signal) and monitor facility (DEG#, FAL#, SYSEN#, PRSNT# signals)
- Data width: 64/32 bits
- Bus speed: 33MHz
- Hot swap: correspondence
HDD:
- 2.5” HDD interface supporting UltraATA/100
- Conforms to 70 x 100 x 9.5 mm size 2.55”HDD
PMC Slot:
- Standard: IEEE 1386.1
- One slot
- Signaling level: 5V
- Data: 32 bit
- Address: 32 bit
Watchdog Timer:
- Uses internal Intel® ICH4™ TCO timer
- Timeout can be set from 2.4 to 37.8s
Front Panel I/O:
- x2 TIA/EIA-232
- x4 parallel ports (PC/AT, PS/2, EPP, ECP)
- PS/2 keyboard
- PS/2 mouse
- 4x USB2.0
- UXGA: 1600x1200 high density D-sub15 male pin connector, Intel® 855GMCH™ controller
- Ethernet: 2x 10/100/1000BASE-T, Intel® FW82546GB™
- SCSI: LSI53C895A, supports Ultra2SCSI (LVD)
Rear Panel I/O
- Serial ports: those of the front panel
- Parallel ports: those of the front panel
- PS/2 mouse: that of the front panel
- PS2/keyboard: that of the front panel
- Graphic port: that of the front panel
- 2x USB ports
- 2x serial ultra ATA/100 E-IDE interface
- Floppy disk: x1 2-mode
- 7-segment LED
Bus:
- PCI local bus specification revision 2.2
- PICMG 2.0 R3.0 CompactPCI Specification
- PICMG 2.1 R1.0 CompactPCI hot swap spacification
RoHS:
Power Supply:
- +5V DC
- +3.3V DC
- When using PMC ±12V DC power supply must be supplied
Power Consumption:
- 17.5W typical, 25W max
- Backup battery CR2430
Mechanical:
- Dimensions: 6U – 160 x 233.35 mm (6.30” x 9.19”)
- Pitch: Double slot – 40.04 mm (1.58”)
- Weight: 800g
Operating Temperature:
Humidity:
Thermal Monitor:
- CPU temperature monitor
- Board temperature monitor
Operating Systems Supported:
- Windows® 98™, Windows® NT™, Windows® 2000™, Windows® XP™
