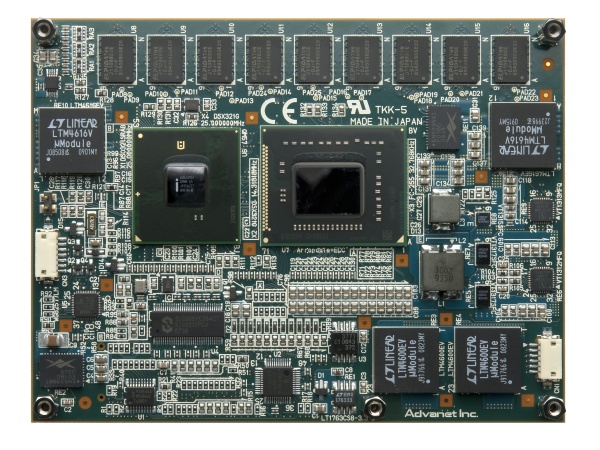

Ideally suited for industrial applications that require advanced computing features, the Adbc8034 provides memory down DDR3 SDRAM with ECC (up to 8GB), VGA, SDVO and LVDS, four SATA, eight USB (2.0), Gigabit Ethernet and multiple PCI Express interfaces.

The Adbc8034 supports most major operating systems, including Microsoft Windows 7, Windows XP, WES 7 and Wind River Linux and can be ordered with a simple to use development kit that gives access to all features of the module.

Processor
Intel® Core™ i7-2715QE
Intel® Hyper-Threading Technology supported, running 8 threads in 4 cores simultaneously
Intel® Turbo Boost Technology supported
Intel® Active Management Technology supported
Advanced Encryption Standard New Instruction (AESNI) supported
High-end graphics facility supporting dual display
Main Memory
DDR3-1333 SDRAM memory down, up to 8GB, ECC capable
IO Functions
4x SATA, 8x USB, 1x GbE, 1x 32bit 33MHz PCI bus
Graphics - 1x Analog VGA, 1x SDVO, 1x LVDS
PCI Express - one x16 (available as two x8), one x4 (available as four x1), two x1
1x LPC bus, 1x I2C bus, 1x SM bus
Form Factor
COM Express Type2 Basic size module
Carrier board available for evaluation
Operating System
Windows7, Windows XP SP3, Windows Embedded Standard 7, Wind River Linux
Design Service
Customized design of carrier board
Designing support service
RoHS
Compliant

CPU:
Processor
Intel® Core™ i7-2715QE processor / 2.1GHz, 45W
Intel® Core™ i5-2515E processor / 2.5GHz, 35W
Chipset Mobile Intel® QM67 chipset

Memory:
Main Memory DDR3-1333 SDRAM memory down, up to 8GB, ECC capable
(selectable from 1GB/2GB/4GB/8GB)
Boot ROM SPI-FLASH, 8MB

COM Express:
Standard PICMG COM.0 COM Express Module Base Spec Rev 1.0
Module Size Basic size (125 mm x 95 mm)
Pinout Type Type 2
PCI Express
One x16 (available as two x8)
One x4 (available as four x1)
Two x1
Graphics 1x Analog VGA, 1x SDVO, 1x LVDS
SATA 4x SATA-300
USB 8x USB 2.0
Ethernet 1x 10/100/1000Base-T
PCI 1x 32bit, 33MHz, 3.3V
LPC 1x LPC bus
SM 1x SMBus
I2C 1x I2C bus
GPIO 4x GPI, 4x GPO

Power supply:
DC 12V (VCC_12V) 12.0V, ±5%, TBD
DC 5V (VCC_5BSBY) 5.0V, ±5%, TBD
DC 3V (VCC_RTC) 3.0V, TBD

Environment:
Operation temp. 0 to +60°C
Storage temp. -10 to +70°C
Humidity Below 80%RH, no condensation
RoHS Compliant

Physical Characteristics

Dimensions: 125mm x 95mm x 16.8mm (incl. heat spreader)
Radiator: Radiators such as heat spreader and passive heat sink are available
Weight: TBD
