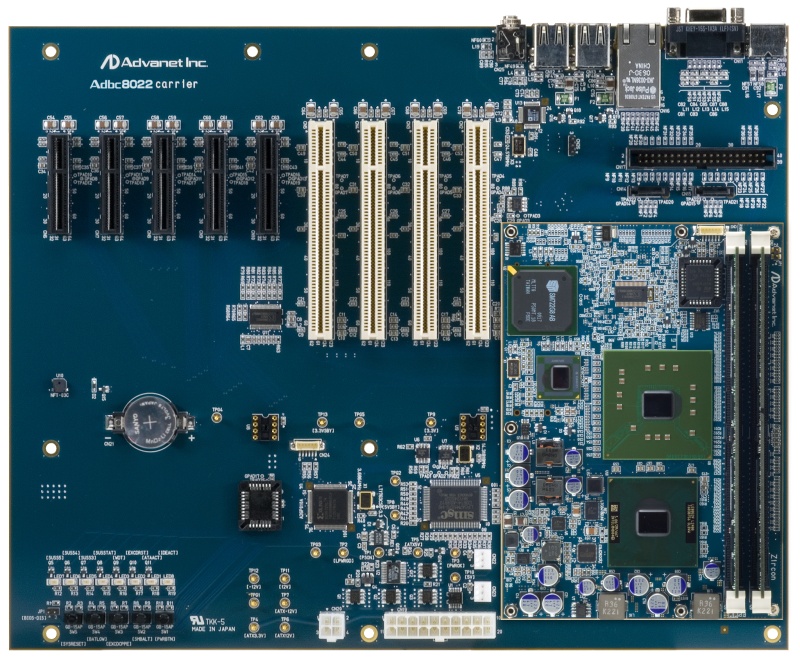

The Adbc8022 is a Computer-On-Module (COM) that is equipped with Intel Core Duo®/Core 2 Duo® Processor. Utilized in concert with a customer needs-matched carrier board, this PICMG COM.0 R1.0-compatible board allows you to freely expand a variety of embedded systems.
The Adbc8022 adopts Intel® server chip sets E7520™ and 6300ESB™. Server chip set E7520™ is endowed with the PCI Express route function in the ECC-compatible memory controller and with the embedded DMA controller for high-speed data transfer from main memory to PCI Express, which provides excellent performance and reliability.
The Adbc8022 uses a dual channel that allows for PCI-3200 registered DIMM for main memory. The main memory, which PC2-3200-capable DIMM is used in dual channel, is expandible up to 4GB and ensures high reliability by virtue of the SEC/DEC x4SDDC function of server chip set E7520™.

Architecture:

• COM Express

CPU:

• Intel Core Duo®/Core 2 Duo®
• 1.66GHz/1.5GHz/2.16GHz
• L1 cache: 32kB/32kB, L2 cache: 2MB

Chipset:

• Memory controller: E7520™
• I/O controller: 6300ESB

Memory:

• DDR DIMM socket dual channel: max 4GB with ECC control
• BootROM: 1MB

COM Express:

• PICMG COM.0 R1.0
• Pin out: type 2

Graphics:

• One port 1280x1024 @24bit
• SM722™

Audio:

• Audio Codec ’97 component specification 2.2

SATA:

• 2 ports serialATA 1.0a, 150MB/s

USB:

• 4 USB2.0 ports

Ethernet:

• 1x 10/100/1000BASE T

IDE:

• One channel

Expansion:

• PCI local bus specification 2.2
• PCI Express interface specification 1.0a

RoHS:

• Compliant

Power Supply:

• +12V DC
• +5V DC
• +3V DC

Power Consumption:

• 12V DC: max 60W (if L2400/L7400), max (if T7400)
• 1W max (5V DC)
• 1µA max (3V-RTC)

Mechanical:

• Form factor: extended
• Dimension: 155 x 110 mm (6.10” x 4.33”)
• Width: 18 mm (0.71”)
• Weight: 325g (heat spreader included but not DIMM)

Operating Temperature:

• 0 to 55°C

Humidity:

• 0 to 90% non-condensing Thermal Monitor:

• Monitors the CPU junction temperature
• Monitors the board surface temperature around the E7520MCH
• Monitors the board surface temperature around the power circuit for the CPU

Operating Systems Supported:

• Windows NT®, Windows 2000®, Windows XP®
