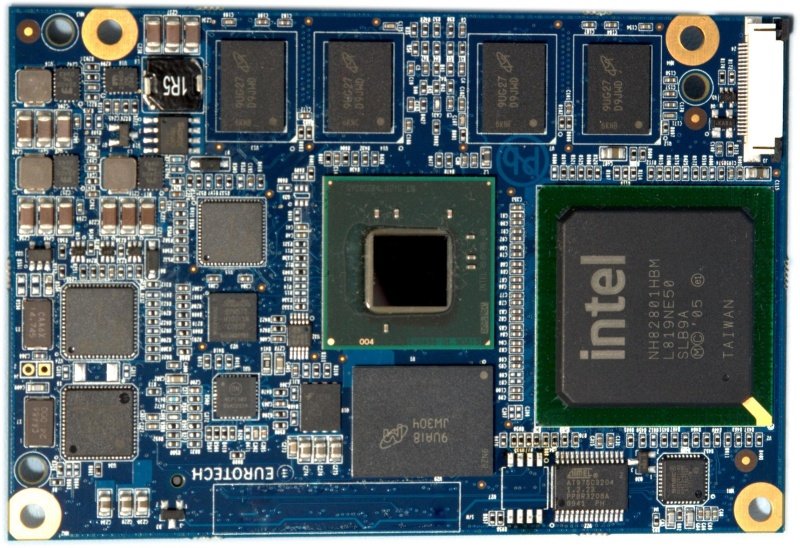

This latest chipset from Intel® offers a graphics engine up to 400MHz, high-speed I/O, and much more. Through Eurotech's design expertise, the Catalyst LP leverages these capabilities to offer a feature-dense embedded solution in the same, fanless 67 x 100 mm form factor that makes our Catalyst product so powerful.
Applications
The Catalyst LP is suited for a range of target applications. It offers high-performance graphics for applications requiring high-end 2-D and 3-D visualization with high-resolution graphics capabilities, including digital signage. In addition, high bandwidth I/O capability including PCIe, and data storage interfaces like SATA make the Catalyst LP ideal for applications requiring extensive data retrieval and processing such as those in the industrial, medical, gaming, human-machine interface, and other markets. The small, fanless design makes it also suited for battery-operated, hand-held devices.
Scalability
With a common footprint, the Catalyst LP system is easily scalable and allows existing Catalyst Module customers to migrate to the new Intel® Atom N450™ and D510™ processors with minimal effort.

Architecture:

• Eurotech form factor

CPU:

• Intel® Atom N450™ @ 1.6GHz (single core) and D510 @ 1.6GHz (dual core)

Chipset:

• Intel® ICH8M™

Memory:

• SDRAM DDR2: up to 2GB 667MHz
• 2x SD/MMC cards
• 2x SATA ports

Graphics/Video/Audio:

• VGA interface
• Single-channel LVDS with 18-bit color interface
• Intel® High Definition Audio

Ehternet:

• 1x Gb Ethernet

USB:

• 9x USB 2.0 ports
• USB port disable capability

Other Interfaces:

• SMBus
• Maintenance Serial Port
• Low Pin Count – LPC bus

Bus:

• Four x1lane PCI Express ports or optionally one x4 lane port

Adapter Board Expandability
Customization options include:

• Serial ports (RS-232, RS-485, optically isolated
• 4 or 5 wire touchscreen interface
• Parallel port
• IrDA interface
• Digital I/O
• Parallel I/O
• CAN bus
• Gb Ethernet
• PCI Express for high speed I/O
• Microphone and speaker audio

Power Supply:

• +3.3V DC
• +5V DC

Power Consumption:

• 7 - 9W typical single core
• 11 - 13 W typical dual core

Mechanical:

• Dimension: 67 x 100 mm (2.8” x 3.9”)

Operating Systems Supported:

• Windows CE 6.0, Windows Embedded Standard, WindRiver Linux 3

Options:

• Everyware™ Software Framework, a powerful Java-based IDE environment is available
• On-board SSD Flash up to 64MB
