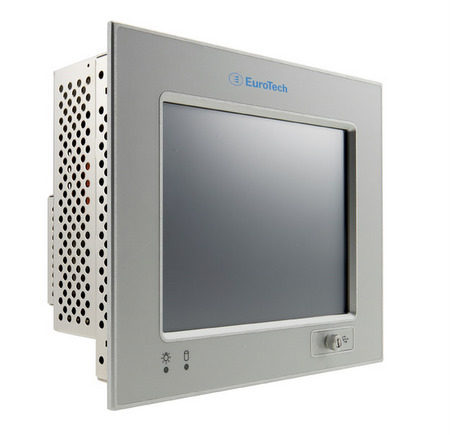

VX-121P
Panel PC display LCD TFT 12,1” touchscreen with Celeron M, Core Duo, i5, i7 processors – one PCI slot expansion
VX-121P is a panel PC with high brightness 12.1" TFT displays, extremely compact, mainly intended for XP Embedded applications. The three model Single Board Computer options use different processors, allowing for a complete choice that can meet every need in the industrial or building sector.
HIGHLIGHTS- Display LCD TFT 12,1” SVGA (800 x 600 or 1024 x 768) - 400cd/sm
- Wide choice of processors
- 1 PCI slot
|
|
APPLICATIONS- Industrial
- Building automation
|
Processor
- Intel Celeron M 440 1.86GHz - FSB 667 MHz - 1MB cache
- Intel Core Duo 2.0GHz - FSB 667 MHz - 2MB cache
- Intel Celeron P4500 1.86GHz - FSB 800/1066 MHz - 2MB cache
- Intel i5 520M 2.4GHz – FSB 800/1066 MHz - 3MB cache
Memory
- 512MB to 8GB (P4500, i5, i7-DDRIII)
Display LCD
- Colour TFT 12,1” SVGA (800 x 600) - 400cd/sm
- Touchscreen: 8 wires resistive
Interfaces
- 2x K/M PS2
- 3x RS-232
- 5x USB 2.0 (one on front)
- 2x Ethernet 10/100/1000
- VGA
- Audio
Slot
SSD Flash Disk
Hard Disk
Front Panel Protection
Mounting
Power Supply
- 110-220V AC (24V DC optional)
Dimension (mm) WxHxD
- 336 x 269 x 108 mm (13.23” x 10.59” x 4.25”)
Operating Temperature
Humidity
Operating Systems Supported
- Windows XP Professional®, Windows XP Embedded®
VX-121P n. 1
(191 Kb)
|
Monitoring Systems for International Super-Yacht - Application_Stories
The world class motor yacht Floridian, recently renamed Nomad, offers the height of luxury combined with state-of-the-art equipment and resources for long range ocean cruising and exploration. The Floridian's monitoring system includes six VX-121P panel PCs with high brightness TFT displays at key locations on the vessel.
|
