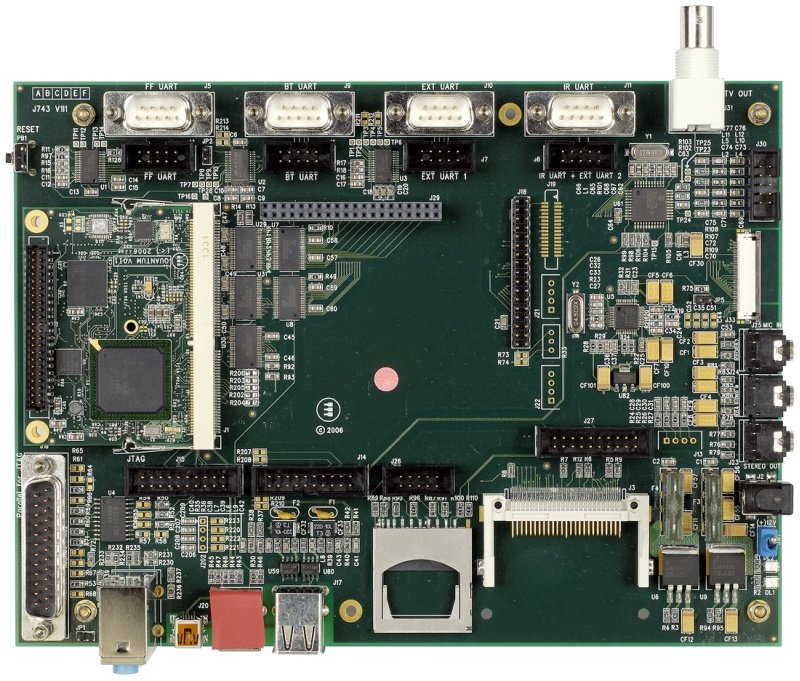

The QUANTUM Baseboard is a design platform providing real world connectivity for the 520MHz PXA270™ QUANTUM module including RS232, USB, Ethernet, audio, video, CompactFlash and much more.
Customization
Full schematics to the QUANTUM Baseboard are included, allowing either the customer or Eurotech to design specific platforms incorporating only those features from the baseboard required for particular applications.
Architecture:
- SODIMM module with adapter board
CPU:
- Marvell® XScale 520MHz PXA270™ (312MHz or 520MHz)
Memory:
- SDRAM: 64 MB soldered on board
- Flash: up to 64 MB soldered on board
- MCC/SD/SDIO interface
- Compact Flash interface bus
Video:
- TFT/STN/LVDS flat panel support
- 4 wire analog resistive touchscreen controller
- Standard VGA out and composite VIDEO output
- Focus FS453™ video encoder
Audio:
- AC97 controller
- 3 x analogue audio jack plugs (stereo Line In, stereo Line Out, Microphone In) provided by UCB1400™ codec
USB:
- 1x USB 1.1 client
- 4x USB 1.1 headers provided by Hi-Speed-Universal-serial-Bus
- Philips® ISP1520™ hub controller
Serial Ports:
Ethernet:
- 10/100 BASE-T
- Davicom® DM900A™ controller
Wireless Connectivity:
- data compliant low power 4.0Mbit/s infrared transceiver provided by STUART
- Bluetooth module connectivity provided by BTUART serial
- WLAN802.11b/g connectivity provided by CF interface
Other Interfaces:
- IDE bus extension on-board interface
- l2C bus
- 2x PWM outputs
- 1x SSP interfaces
- Up to 5 GPIOs
RoHS:
Power Supply:
Power Consumption:
- 21W max including LCD consumption
Operating Temp:
- -20 to +70°C (commercial)
- -40 to +85°C (extended)
Mechanical:
- Dimension: 180 x 120 mm (7.08” x 4.72”)
Operating Systems Supported:
Options:
- TPM
- One more Sinchronous Serial Port (SSP)
- Other two PWM interfaces
